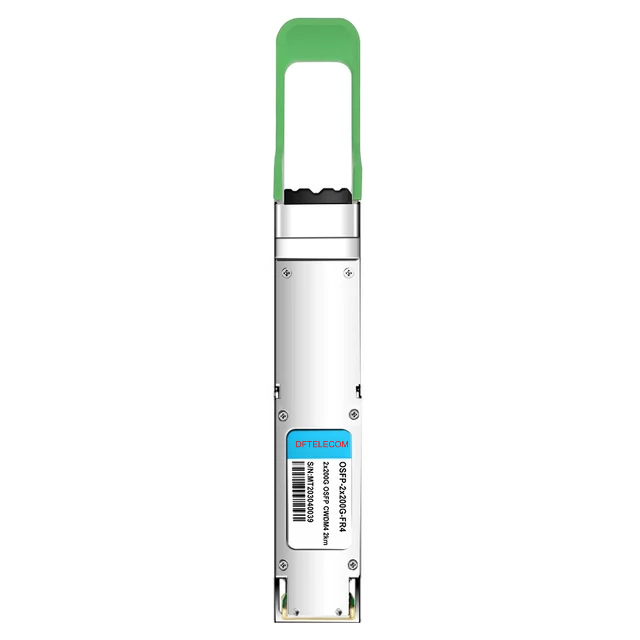

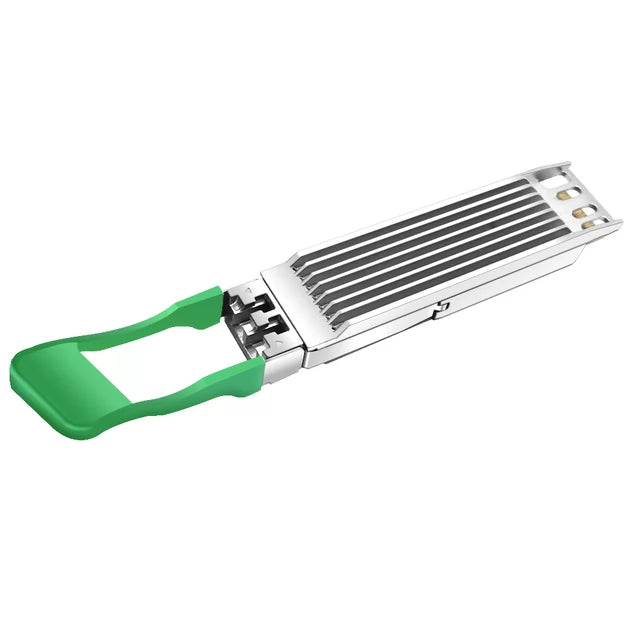

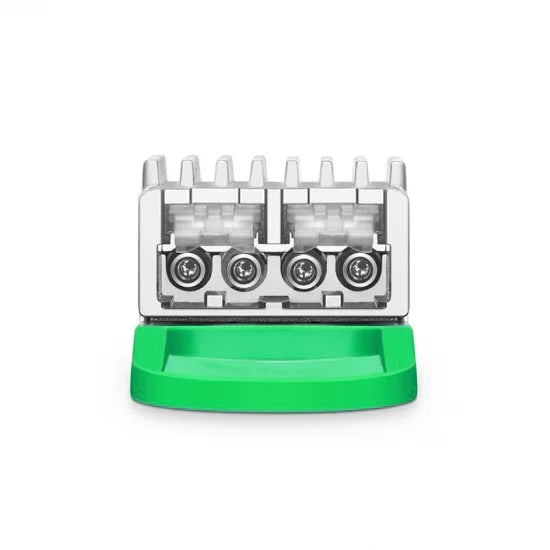

OSFP-2x2400G-FR4 2x 200G OSFP FR4 PAM4 2x CWDM4 CS 2km SMF FEC Optical Transceiver Module
OSFP-2x2400G-FR4 2x 200G OSFP FR4 PAM4 2x CWDM4 CS 2km SMF FEC Optical Transceiver Module
Impossible de charger la disponibilité du service de retrait
2x 200G FR4 OSFP PAM4 2 Sets of 4 CWDM lanes MUX/DEMUX design Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm CS SMF 2km with FEC DDM)
Product Details
| P/N | OSFP-400G-FR4 | Vendor Name | DFTTELECOM |
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2Km |
| Connector | Duplex CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 2x CWDM4 EML | Receiver Type | PIN |
| TX Power | -4.2~+4.7dBm | Receiver Sensitivity | < -6.0dBm |
| Operation Temperature Protocols |
0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
Modulation Format PAM4 |
Application | 400G Ethernet, | |
| OSFP MSA, IEEE 802.3bs | Datacenter Enterprise Networking, Infiniband Interconnects |
2x400G to 400G Links
400GIB/EN Switches to 2 Connectx-7 and BIueField-3
