DFT TELECOM

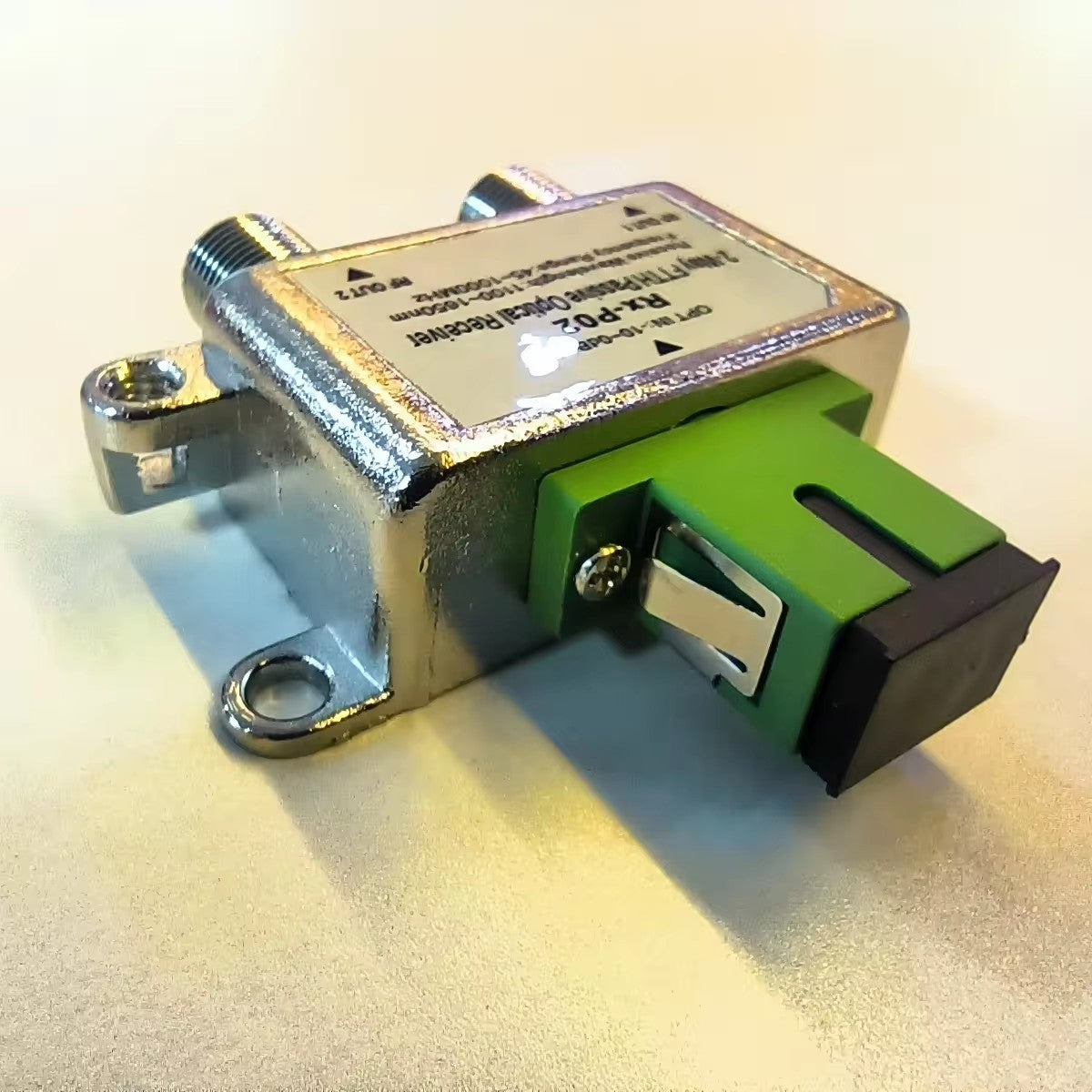

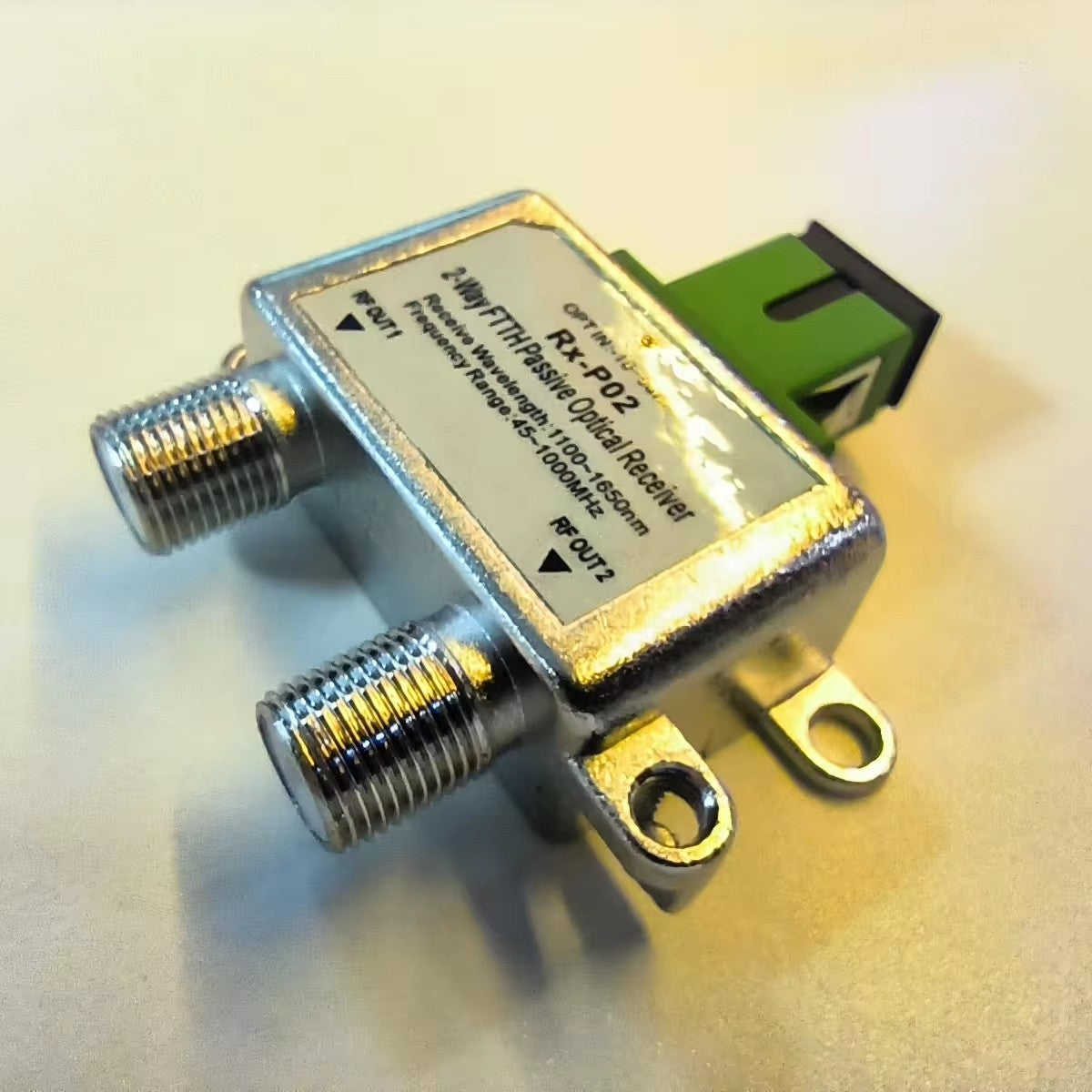

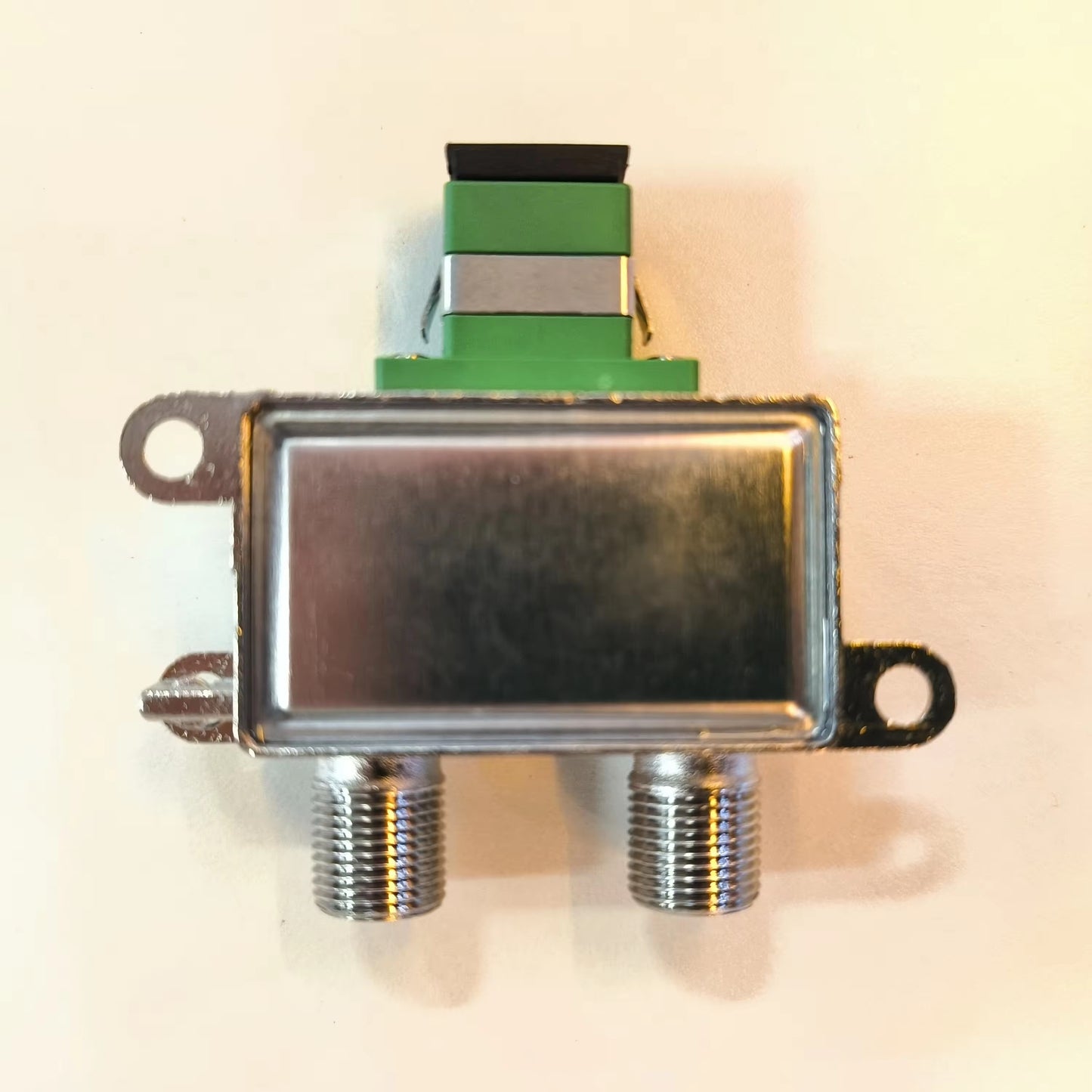

Rx-P02 2 way 45-1000MHz optical splitter rf cable tv nod mini wdm catv fiber passive ftth passive optical receiver
Rx-P02 2 way 45-1000MHz optical splitter rf cable tv nod mini wdm catv fiber passive ftth passive optical receiver
Regular price
$3.50 USD
Regular price
Sale price
$3.50 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
1. 2-Way Passive Optical Receiver
2. Designed for FTTH(Fiber To The Home) networks
3. Without the power supply can work normally
4. Zinc die-cast housing, nickel-plated
Specification
| ltem | Specification |
| Input optical power | -12～0dBm |
| Input Wavelength | 1100～1650nm |
| RF Frequency Range | 45-1000MHz |
| Output leve | ≥62dBuV@-1dBm |
| Responsivity | ≥0.9 A/W |
| Optical connector | SC/APC |
| RF connector | F-female |
| Dimensions | 52×14.5×10mm |
