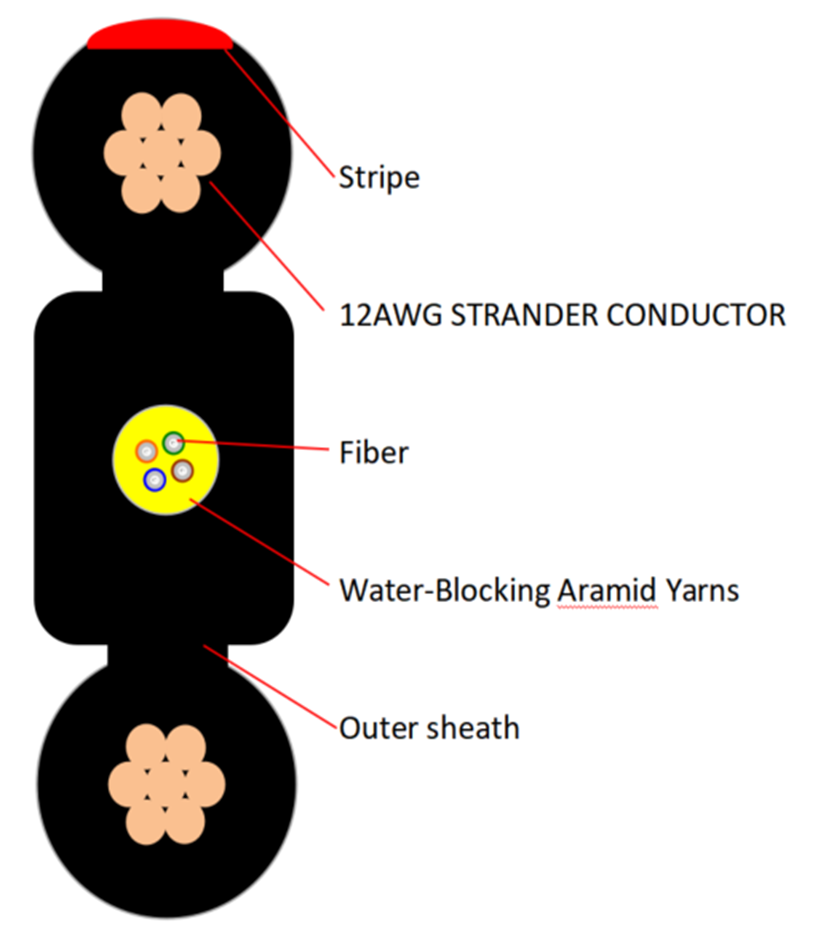

DFT-OEC-4O2ES12 Hybrid Powered Fiber Cable (OS2, 4 Fibers, Outdoor, 12AWG)
DFT-OEC-4O2ES12 Hybrid Powered Fiber Cable (OS2, 4 Fibers, Outdoor, 12AWG)
Couldn't load pickup availability
Product Overview
DFTTELECOM presents the DFT-OEC-4O2ES12, a high-performance Powered Fiber Cable designed for outdoor FTTH (Fiber-to-the-Home) and broadband deployments. Combining OS2 singlemode fiber and 12AWG stranded conductors, this hybrid cable ensures flexibility, durability, and rapid installation in harsh environments.
Key Features
. Easy Peel & Stranded Conductors – Ensures maximum flexibility and quick access for splicing.
. Polarization Indentation – Allows easy polarity identification for accurate fiber alignment.
No Special Tools Required – Compatible with standard FTTH pressure clamps for aerial installation.
. Split Design – Can be separated into three sections for flexible routing in closures.
. UV-Resistant Polyethylene Jacket – Ideal for outdoor duct, direct burial, and aerial applications.
. RoHS & Telcordia GR-20-CORE Certified – Compliant with global environmental and safety standards.
Technical Specifications
Fiber Optic Performance
|
Parameter |
Specification |
|
Fiber Type |
OS2 (G.657.A2, ITU-T B2) |
|
Fiber Count |
4 |
|
Attenuation (Max @ 1310nm) |
≤ 0.35 dB/km |
|
Attenuation (Max @ 1550nm) |
≤ 0.22 dB/km |
|
Macrobending Loss (@ 1550nm, 10mm Bend Radius) |
≤ 0.1 dB (G.657.A2 compliant) |
|
Zero Water Peak (ZWP) Performance |
Yes |
|
Dispersion |
Unshifted Single Mode (ITU-T G.652.D) |
Electrical & Mechanical Properties
|
Parameter |
Specification |
|
Conductor Gauge |
12 AWG (Stranded) |
|
Tensile Load (Long-Term) |
132 N (30 lbf) |
|
Tensile Load (Short-Term) |
440 N (99 lbf) |
|
Minimum Bend Radius (Loaded) |
50 mm (2.0 in) |
|
Minimum Bend Radius (Unloaded) |
30 mm (1.2 in) |
|
Vertical Rise (Max) |
122 m (400.3 ft) |
Environmental & Installation
|
Parameter |
Specification |
|
Jacket Material |
UV-Stabilized Polyethylene (Black) |
|
Installation Temp. |
-10°C to +60°C (+14°F to +140°F) |
|
Operating Temp. |
-40°C to +70°C (-40°F to +158°F) |
|
Storage Temp. |
-40°C to +70°C (-40°F to +158°F) |
|
Flame Rating |
Low Smoke Zero Halogen (LSZH) / Riser |
Applications
. FTTH & Broadband Networks (Aerial, Underground, Direct Burial)
. Smart City & 5G Infrastructure
.Industrial & Outdoor Power + Data Transmission
. Telecom & Utility Networks
Ordering Information
|
Model |
Description |
Minimum Order |
|
DFT-OEC-4O2ES12 |
4-Fiber OS2, 12AWG, Outdoor |
1000 meters |
