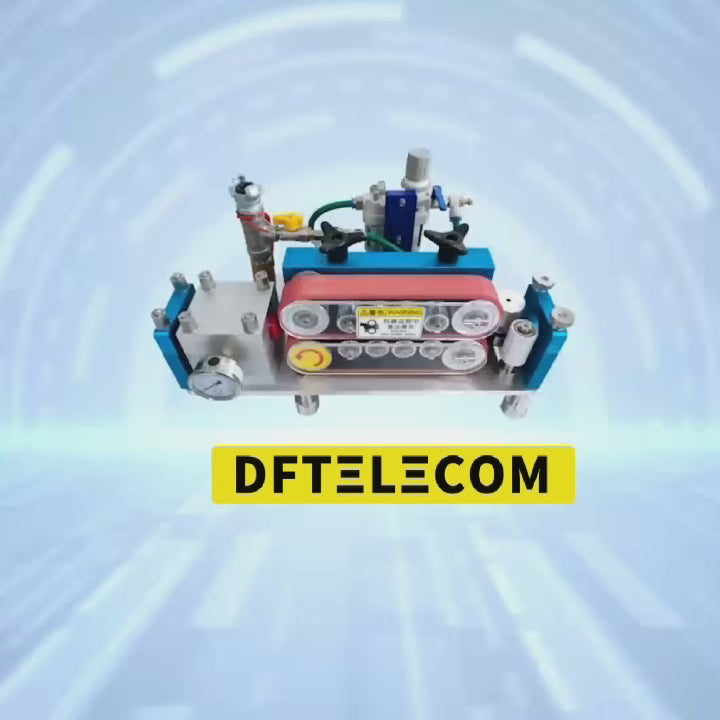

Multi functional hydraulic fiber optic cable blowing machine T700CY
Multi functional hydraulic fiber optic cable blowing machine T700CY
Couldn't load pickup availability
Scope of application:
Equipped with dual imported hydraulic drive motors, imported Briggs&Stratton 13-horsepower engine hydraulic pump station; Low failure rate, long service life, high thrust, high efficiency, long-distance installation; Heavy-duty armored optical cables can be laid, suitable for cable diameters 8-22mm, air-blown 3*10/8mm microtubes (8-12mm customizable); Stepless speed regulation, easy to operate, easy to maintain; Small in size, powerful; Bidirectional operation, can be used in special sections as a substitute for cable traction machines;
Product advantages
Suitable for air-blowing for laying a variety of optical cables
Suitable for 8 to 22MM optical cables, fast push speed, easy to operate and maintain;
No damage to optical cables
Using a conveyor belt with proper flexibility makes it easier to protect the cable from damage to the outer skin or core during construction;
Efficient push
The air-blowing method for laying optical cables is highly efficient and safer, significantly reducing the attenuation of optical cables during construction; Air-blowing cables laid into pipes
Relative to the cable laid in the pipe by traction, it should be relaxed to protect the cable from short-term and long-term tension, effectively
Extend the service life of the cable;
|
Whole machine model (imported movement) |
|
T700CY |
|
Name |
|
Multifunctional hydraulic cable blowing machine |
|
Adapt to cable diameter (outer diameter) |
mm |
8 ~ 22 |
|
Adapted pipe diameter (outer diameter) |
mm |
32 ~ 50 |
|
Air-blow microtubes 10/8mm |
|
1 to 3 |
|
Thrust N |
N |
0 ~ 1000 |
|
Push speed (length pushed in per minute) meters |
m/min |
0 ~ 120 |
|
Host rated air pressure |
bar |
16 |
|
Mainframe weight |
Kg |
32 |
|
Main engine movement pressure (oil pressure) |
Mpa |
4 ~ 8 |
|
Pump station engine model (Powerton) |
|
XR2100 |
|
Pumping station power |
kw |
11 |
|
Host volume (length, width, height) |
mm |
600 * 370 * 320 |
|
Mainframe packaging volume |
mm |
750 * 480 * 480 |
|
Mainframe packaging weight |
kg |
55 |
|
Pumping station volume (length, width, height) |
mm |
800 * 600 * 750 |
|
Pump station weight |
kg |
110 |
|
Pumping station packaging volume (box) length width height |
mm |
900 * 700 * 900 |
|
Pump station packaging weight |
kg |
130 |
Technical parameters of T700CY hydraulic multifunctional cable
blowing machine
|
Suitable pipeline |
Mainly suitable for optical cables, cables and optical-electrical composite cables with diameters of 8-22mm, suitable for H-d p-E or p-e pipe materials with outer diameters of 32-50mm. Mainly suitable for optical cables, cables, and optoelectronic composite cables with a diameter of 8-22mm, and suitable for H D P E or P E pipes with an outer diameter of 32-50mm. |
|
Host weight |
32Kg |
|
volume Power source working pressure Power source fuel |
600*370*320mm(Length * Width * Height) |
|
Hydraulic drive 4 to 8 Mpa 11KW |
|
|
16bar |
|
|
Gasoline above 92 # |
|
|
Application scope |
GYTA53, GYTA, GYTS53 pipe fibers with diameters less than 22mm and 288 cores or less; Cable YJV-2*6, YJV-2*10, YJV-2*16, YJLV-2*10, YJLV-2*16 electrical cable 22mm or less, synchronous 1 to 3 10/8mm high-density polyethylene microtubes; GGYTA53, GYTA, GYTS53 pipeline optical fibers with a diameter of less than 22mm and 288 cores or less; YJV-2 * 6, YJV-2 * 10, YJV-2 * 16, YJLV-2 * 10, YJLV-2 * 16 electrical cables with a diameter of 22 millimeters or less, synchronized with 1-3 10/8mm high-density polyethylene microtubes; |
|
Host packaging volume (length, width, height) |
750*450*480mm(Length * Width * Height) |
|
Main unit packaging weight |
55kg |
|
Volume of hydraulic power source |
800×600×750mm(Length * Width * Height) |
|
Hydraulic power source packaging volume |
900*700*900mm(Length * Width * Height) |
|
Hydraulic power source weight |
110kg (including packaging 130kg) |
|
Air-blow length Laying length 600-2000 m (depending on terrain, cable diameter, cable weight and HDPE silicon core tube mass, maximum push speed 120m/min, recommended speed 60-80m/min; 600-2000 meters (depending on terrain and silicon tube mass, maximum propulsion speed 120m/min, recommended speed 60-80m/min) |
|
|
|
|
|
Suitable pipeline |
Mainly suitable for optical cables, cables and optical-electrical composite cables with diameters of 8-22mm, suitable for H-d p-E or p-e pipe materials with outer diameters of 32-50mm. Mainly suitable for optical cables, cables, and optoelectronic composite cables with a diameter of 8-22mm, and suitable for H D P E or P E pipes with an outer diameter of 32-50mm. |
|
Host weight |
32Kg |
|
volume Power source working pressure Power source fuel |
600*370*320mm(Length * Width * Height) |
|
Hydraulic drive 4 to 8 Mpa 11KW |
|
|
16bar |
|
|
Gasoline above 92 # |
|
|
Application scope |
GYTA53, GYTA, GYTS53 pipe fibers with diameters less than 22mm and 288 cores or less; Cable YJV-2*6, YJV-2*10, YJV-2*16, YJLV-2*10, YJLV-2*16 electrical cable 22mm or less, synchronous 1 to 3 10/8mm high-density polyethylene microtubes; GGYTA53, GYTA, GYTS53 pipeline optical fibers with a diameter of less than 22mm and 288 cores or less; YJV-2 * 6, YJV-2 * 10, YJV-2 * 16, YJLV-2 * 10, YJLV-2 * 16 electrical cables with a diameter of 22 millimeters or less, synchronized with 1-3 10/8mm high-density polyethylene microtubes; |
|
Host packaging volume (length, width, height) |
750*450*480mm(Length * Width * Height) |
|
Main unit packaging weight |
55kg |
|
Volume of hydraulic power source |
800×600×750mm(Length * Width * Height) |
|
Hydraulic power source packaging volume |
900*700*900mm(Length * Width * Height) |
|
Hydraulic power source weight |
110kg (including packaging 130kg) |
|
Air-blow length Laying length 600-2000 m (depending on terrain, cable diameter, cable weight and HDPE silicon core tube mass, maximum push speed 120m/min, recommended speed 60-80m/min; 600-2000 meters (depending on terrain and silicon tube mass, maximum propulsion speed 120m/min, recommended speed 60-80m/min) |
|
|
|
|
|
Serial number Serial number |
Name of accessories |
model |
Units unit |
quantity |
|
1 |
Hydraulic multifunctional cable blowing machine host |
T700CY |
one |
1 |
|
2 |
Aviation packing box |
|
one |
1 |
|
3 |
Gasoline mobile hydraulic pump station Gasoline mobile hydraulic pump station |
QY30L |
one |
1 |
|
4 |
Hydraulic oil |
46 # |
L |
18 |
|
5 |
Hydraulic tubing |
Ø 16 |
one |
10 |
|
6 |
High-pressure air pipe (with connector) |
Ø 40 |
m |
10 |
|
7 |
Conveyor belt Conveyor belt |
|
one |
6 |
|
8 |
Cable plug |
M16, M22 |
one |
2 |
|
9 |
Pipe plug |
32mm, 40mm |
one |
2 |
|
10 |
Optical cable sealing ring |
10 - Ø Ø 22 mm |
one |
40 |
|
11 |
High-pressure air pipe connector High pressure gas pipe quick connector |
G1” |
one |
2 |
|
12 |
High-pressure gas pipe joint seal ring High pressure gas pipe quick connector |
G1” |
one |
4 |
|
13 |
Optical cable guide groove |
Ø18, Ø26 |
one |
2 |
|
14 |
Gas pipe clamp |
Ø 40 |
one |
2 |
|
15 |
Air chamber sealing ring |
4mm |
one |
2 |
|
16 |
Hydraulic sealing ring |
|
one |
8 |
|
17 |
Pipe scissors |
40mm |
one |
2 |
|
18 |
inner hexagon spanner |
|
one |
1 |
|
19 |
Forceps |
|
one |
1 |
|
20 |
Pipe union |
Ø 40 |
one |
1 |
|
21 |
Blowing cable lubricant Blowing lubricant |
|
kg |
25 |
|
22 |
Pipeline tester |
DN40 |
one |
1 |
|
23 |
Vertical scissors |
|
one |
1 |
|
24 |
nameplate |
|
one |
1 |
|
25 |
Certificate of conformity |
|
one |
1 |
|
26 |
Factory inspection report |
|
one |
1 |
Technical specifications for air compressors required for T700CY cable-blowing machines
|
Serial number |
Project |
Units |
Data |
|
1 |
name |
|
Diesel mobile screw air compressor |
|
2 |
Exhaust volume |
m³/min |
10 ~ 15 |
|
3 |
Exhaust pressure |
bar |
12 ~ 15 |
|
4 |
Engine properties |
|
Diesel fuel engine |
|
5 |
Engine power |
kw |
110 ~ 150 |
|
6 |
Exhaust oil content |
PPM |
£5 |
|
7 |
Exhaust temperature |
℃ |
≦ 50 ℃ |
|
8 |
Compression level |
level |
1 ~ 2 |
|
9 |
Transmission mode |
|
Coupling transmission |
|
10 |
Cooling method: |
|
Air-cooled Air-cooled |
|
11 |
noise |
dB |
≦ 70 + 5 |
|
12 |
Whole machine volume |
|
length, width and height ≤ 3200mm* ≤ 1800mm* ≤ 2200mm |
|
13 |
Full load working speed |
RPM |
2000 |
|
14 |
Number of cylinders |
a |
6 |
|
15 |
Maximum ambient temperature Maximum ambient temperature |
℃ |
40 |
|
16 |
Minimum startup temperature Minimum startup temperature |
℃ |
-10 |
|
|
|
|
|
GY13-30L Data sheet for mobile hydraulic pump station
|
Name |
|
Mobile hydraulic pump station Data sheet for mobile hydraulic pump station |
|
Model |
|
GY13-30L |
|
flow flow |
L |
15 to 30 adjustable |
|
Engine power |
HP |
13 (11KW) |
|
Engine model |
|
Briggs&Stratton XR2100 |
|
Pressure Range |
Mpa |
4 ~ 12 |
|
Power mode Power mode |
|
gasoline engine |
|
Suitable for pipeline diameter Hydraulic tank reserves |
L |
12 |
|
Hydraulic oil model Hydraulic oil model |
|
46# Anti-wear hydraulic oil |
|
Weight Main engine weight |
kg |
110 |
|
Host volume |
mm |
Dimensions: 800×600×750 in length, width and height |
|
Packaging method Packaging method |
|
Wooden box |
|
Packaging volume |
mm |
Dimensions 900*700*900 |
|
package weight |
Kg |
130 |
Technical specifications for HDPE silicon core tubes
