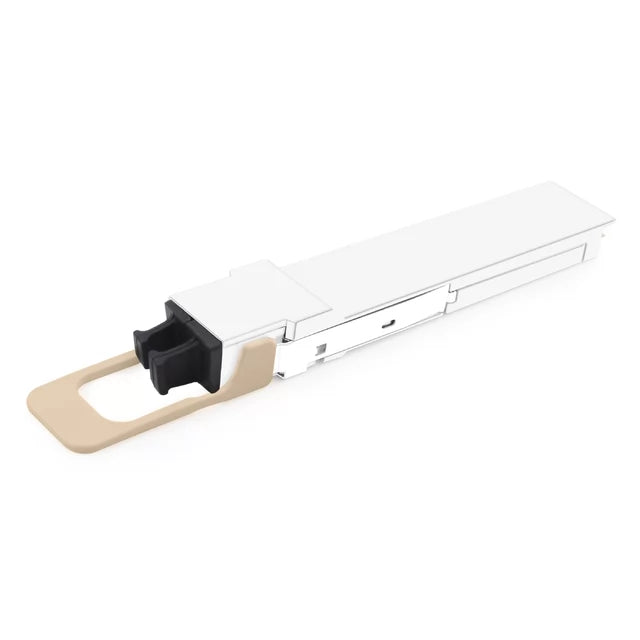

NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

Name: NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module
Brand: DFT TELECOM
Availability: InStock

$0.00 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

NVIDIA MMA4Z00-NS-FLT Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM

OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver comprises two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. The receiver path consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Product Details

NVIDIA Compatible	MMA4Z00-NS-FLT	Vendor Name	DFT TELECOM
Form Factor	OSFP	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	850nm	Max Distance	60m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	Dual MTP/MPO-12	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 15W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

800G NDR Switch to DGX H100

NVIDIA Quantum-2 IB Switch to DGX H100 Links Using Single-mode Optics

Quality Assurance

Excellent quality is the foundation of DFT's survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

NVIDIA MMS4A00 1.6T OSFP DR8D 500m IHS 2xMPO Transceiver | FiberMall

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability. DFT adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

DFT Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

DFT's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.
