100G LR ER ZR Dual fiber to Single fiber Converter
100G LR ER ZR Dual fiber to Single fiber Converter
Impossible de charger la disponibilité du service de retrait
With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises. DFT provides 100G dual-port to single-port converter for bidirectional transmission of 100GLR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.

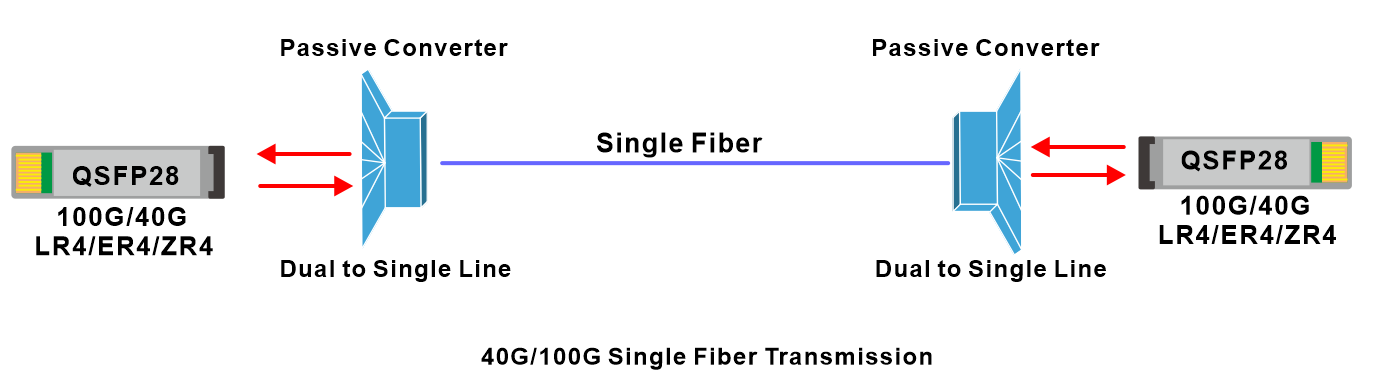

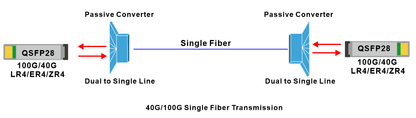

Dual fiber 100G transceiver in single fiber transmission application:
100G Dual fiber to single fiber Converter
. Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber
.Operation wave 1310nm
.TX/RX Port：LC Connector; Line Port SC/APC
.Passive device, Low Insertion Loss
Specifications:
|
Wavelength |
1310nm |
Rate |
40G/100G |
|
Insertion Loss |
≤ 1dB |
Technology |
TFF (Thin Film Filter) |
|
Line Insertion Loss |
≤ 2.0dB |
Isolation |
≥35dB |
|
Polarization Dependent Loss |
≤ 0.1ps |
Return Loss |
≥ 45dB |
|
TDL (dB) |
≤0.15dB |
PMD (ps) |
≤0.055nm |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Power handling |
≤500mW |
Fiber Type |
SMF-28e |
|
Connector |
LC/UPC, SC/APC |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX BOX :0.5KG 4Slot 1u Rack: 2.5KG |
Dimensions (HxWxD) |
LGX BOX 214.5*150*20mm 4Slot 1u Rack 44*440*160mm |
Package Information

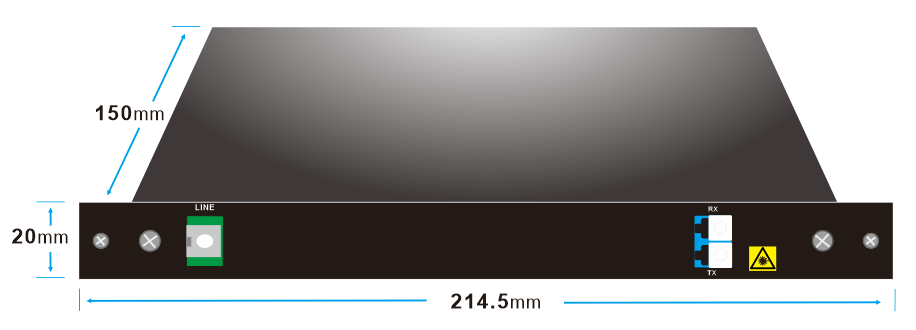

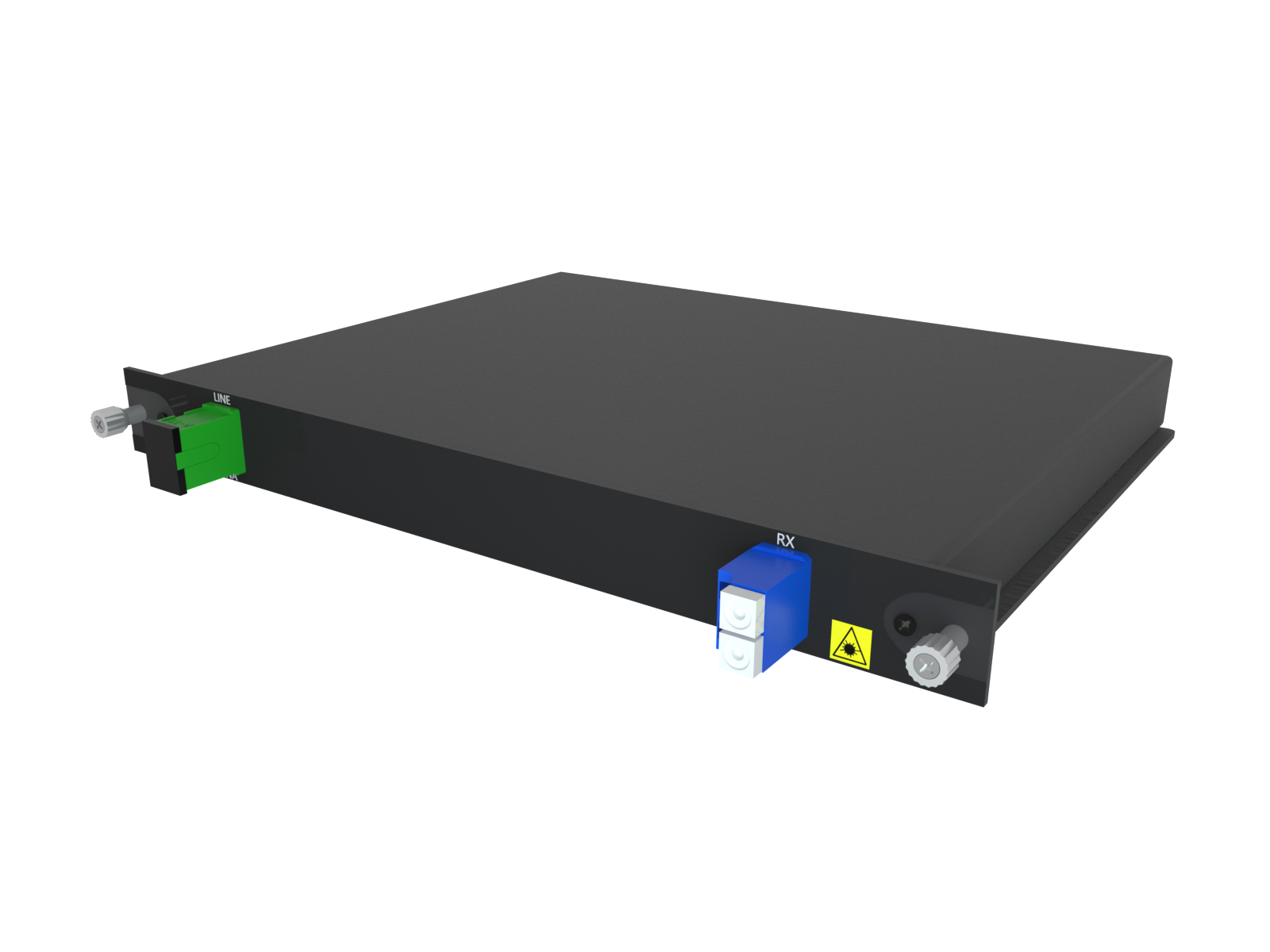

Plug-in LGX Box

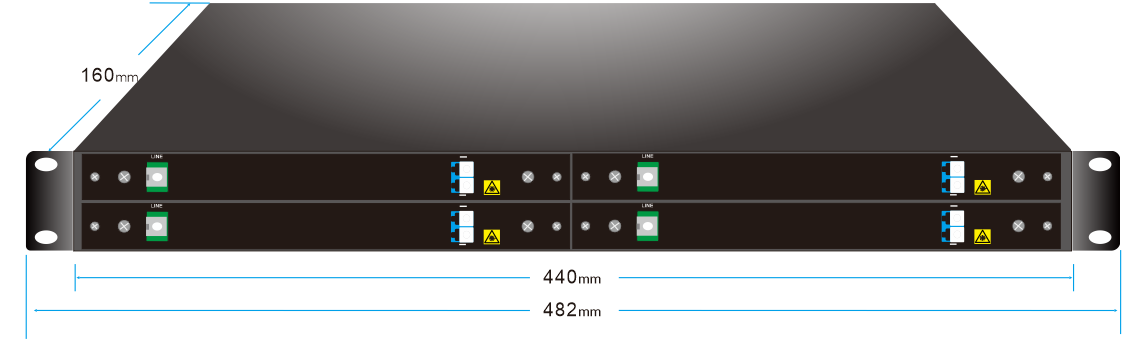

4-Slot 1U Rack for LGX BOX
Order Information
|
Product No. |
Product description |
|
100G-LGX04-D-S |
100G LR ER ZR Dual fiber to Single fiber Converter，TX/RX port LC/UPC， Line Port SC/APC Plug-in LGX Module |
|
1U02-4LGX |
19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
