50GHz 96CH DWDM MUX DEMUX
50GHz 96CH DWDM MUX DEMUX
Impossible de charger la disponibilité du service de retrait
Dual fiber 96CH C14-H61 DWDM MUX DEMUX, 50GHz AAWG, with 1310nm and Monitor Port, LC/UPC 2U Rack
The DWDM AAWG 96CH MUX/ DEMUX is designed by DFT , wavelength from C14 to H61(1566.31nm~1528.38nnm), in accordance with the ITU-T G.694 .1 50GHZ grid, it maximizes the capacity of the C-band range. It’s totally passive DWDM device, and support low insertion loss( wavelength ports＜7.0dB).

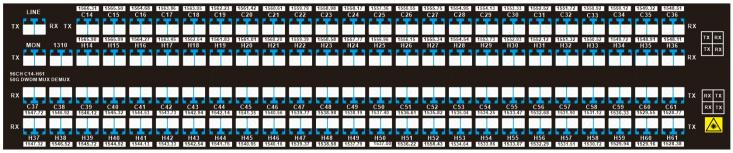

Product Panel
1310nm port can support 1G LX/SX, 10G LR, 40G ER4/LR4, 100G LR/ER4/LR4/ZR4; it for Existing Legacy Traffic .
Mon port is for network link monitoring or power monitoring,easy troubleshooting without affecting traffic.
Line Link
96 Channels DWDM MUX DEMUX and with 1310nm Port, supports 97 channels difference service in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
96channels C14/H14-C61/H61 |
Channel Spacing |
50GHz (0.4nm) |
|
Center Wavelength Accuracy |
±0.05nm |
Technology |
AAWG |
|
Insertion Loss |
≤7.0B |
Link Loss |
≤ 14dB |
|
Total Crosstalk |
≥25dB |
Ripple in Passband |
≤ 0.75dB |
|
-1dB passband |
≥0.18dB |
-3dB passband |
≥0.28dB |
|
Return Loss |
≥ 40dB |
Directivity |
≥ 40dB |
|
Polarization Mode Dispersion |
≤ 0.5ps |
Polarization Dependent Loss |
≤ 0.5dB |
|
Channel Isolation |
Adjacent ≥ 25dB Non-adjacent ≥ 30dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
4.5KG |

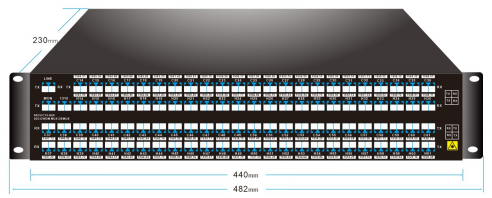

Dimensions (HxWxD) |
88*440 *230mm |
