DFT Instapatch G2 1U Sliding Modular Cassette 4-Slot Fiber Panel
DFT Instapatch G2 1U Sliding Modular Cassette 4-Slot Fiber Panel
Impossible de charger la disponibilité du service de retrait

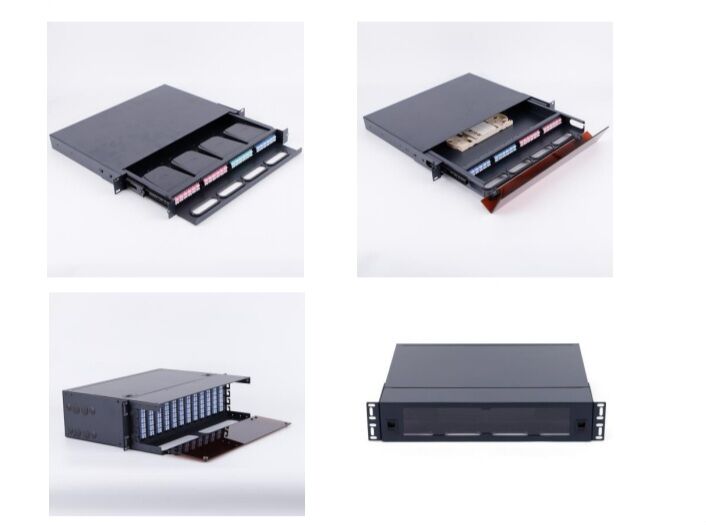

DFT Instapatch G2 1U Sliding Modular Cassette 4-Slot Fiber Panel
ent equipment.
- Enhances airflow management and reduces bend stress on connected fibers.
Standard 1U 19 Rack Form Factor
- Fits all EIA-310 compliant 19-inch cabinets and open-frame racks.
- Optimized depth (18") for seamless integration into tight spaces.
Unloaded Chassis – Install What You Need, When You Need It
- Ships without pre-installed modules—ideal for phased rollouts and custom builds.
- Enables future expansion and reconfiguration as network needs evolve.
Durable Industrial-Grade Construction
- Made from cold-rolled steel with durable powder-coated finish for long-term reliability.
- Resists corrosion, impact, and environmental wear in demanding environments.
- Sleek matte black finish blends with modern IT and industrial aesthetics.
Technical Specifications
(Model: DFT-1U-HD-4S |
High-Density, Field-Configurable Fiber Management Solution
Overview
The DFT Instapatch G2 1U Sliding Modular Cassette 4-Slot Fiber Panel is a high-performance, space-efficient fiber management platform engineered for modern data centers, enterprise networks, and industrial environments. Designed with flexibility and serviceability in mind, this sliding fiber panel supports multiple deployment modes—including patching, splicing, and hybrid configurations—delivering a scalable backbone for structured optical infrastructures.
Patching Applications: DFT-HD-1U
Splicing Applications: DFT-HD-1U-SP
Key Features & Benefits
Modular Architecture for Flexible Deployment
- Supports up to four G2-style modular cassettes for LC or SC connectivity.
- Compatible with one high-density data module or one double-height panel (360DP equivalent)
- Accommodates two Splice units, each holding three splice trays (up to 6 trays total), ideal for high-count fusion splicing.
Full-Extension Sliding Shelf
- Smooth-glide rails enable complete pull-out access—even in deep racks.
- Simplifies cable routing, labeling, and maintenance without disturbing adjac
|
Attribute |
Specification |
|
Product Type |
Fiber Distribution Panel |
|
Form Factor |
1U Rack Mountable |
|
Shelf Mechanism |
Full-Travel Sliding |
|
Front Interface |
Unloaded (User-Configurable) |
|
Max Supported Modules |
- 4 × G2 Modular Cassettes - 1 × InstaPatch HD Module - 1 × 360DP-style Panel - 2 × RoloSplice Units (6 trays max) |
|
Color |
Black |
|
Material |
Cold-Rolled Steel, Powder Coated |
Physical Dimensions
|
Parameter |
Metric |
|
Height |
44.3 |
|
Width |
483 |
|
Depth |
403.5 mm |
|
Net Weight |
5.443 kg |
Compliance & Certifications
All DFT Instapatch products meet global regulatory standards:
- RoHS Compliant – Conforms to EU 2011/65/EU directive
- UK RoHS Compliant
- REACH SVHC – No substances above threshold per current candidate list
- China RoHS II – Marked and compliant with concentration limits
- ISO 9001:2015 – Manufactured under certified quality management system
