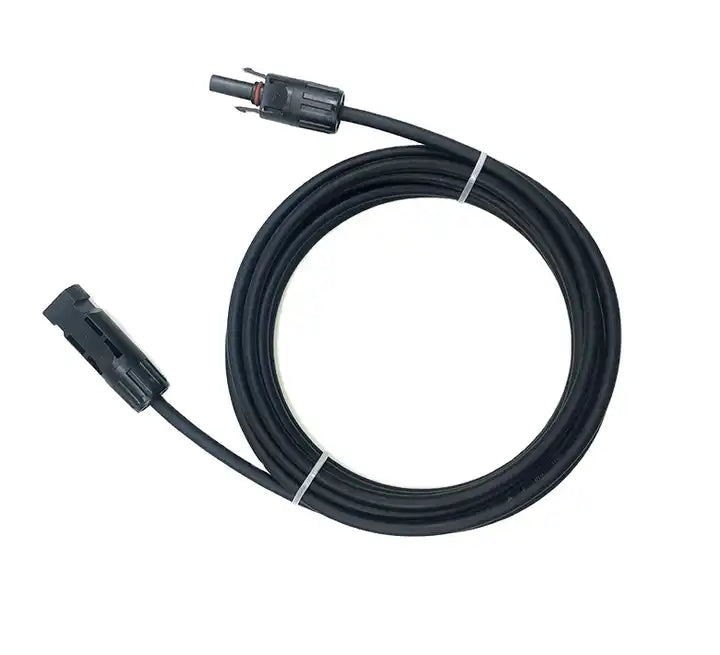

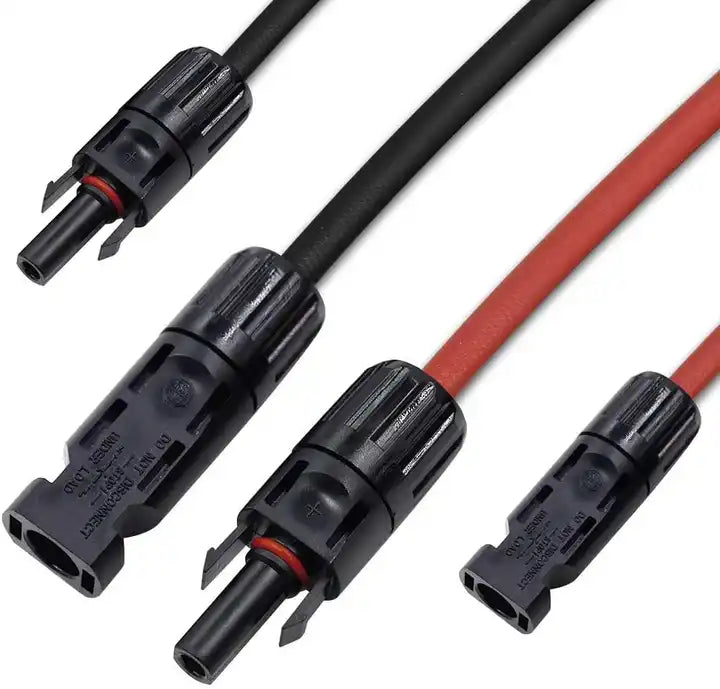

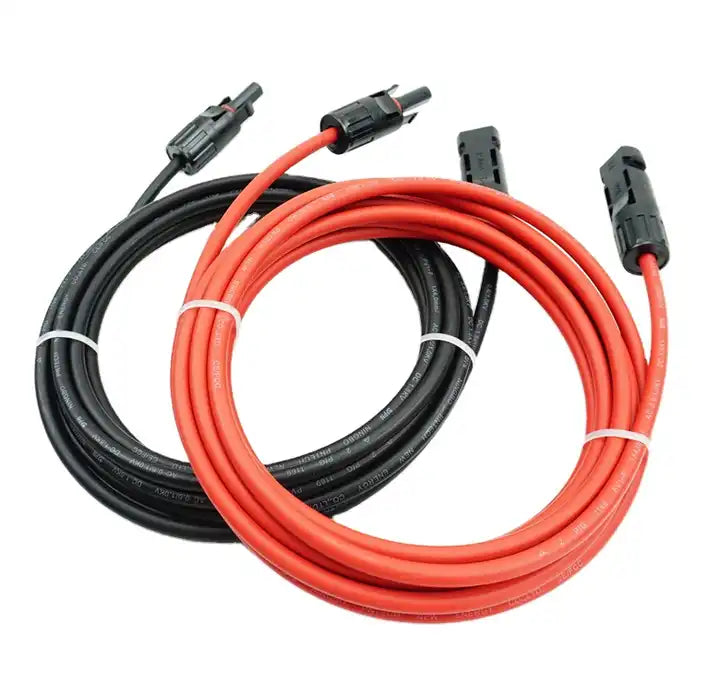

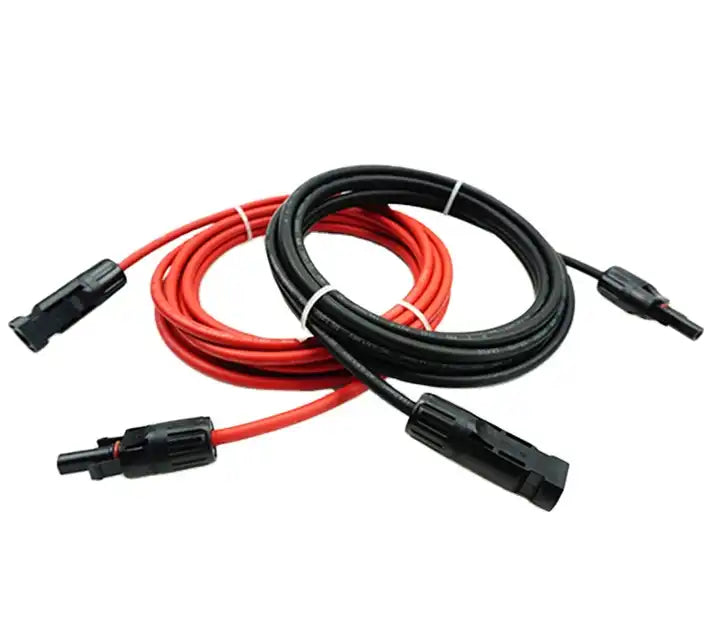

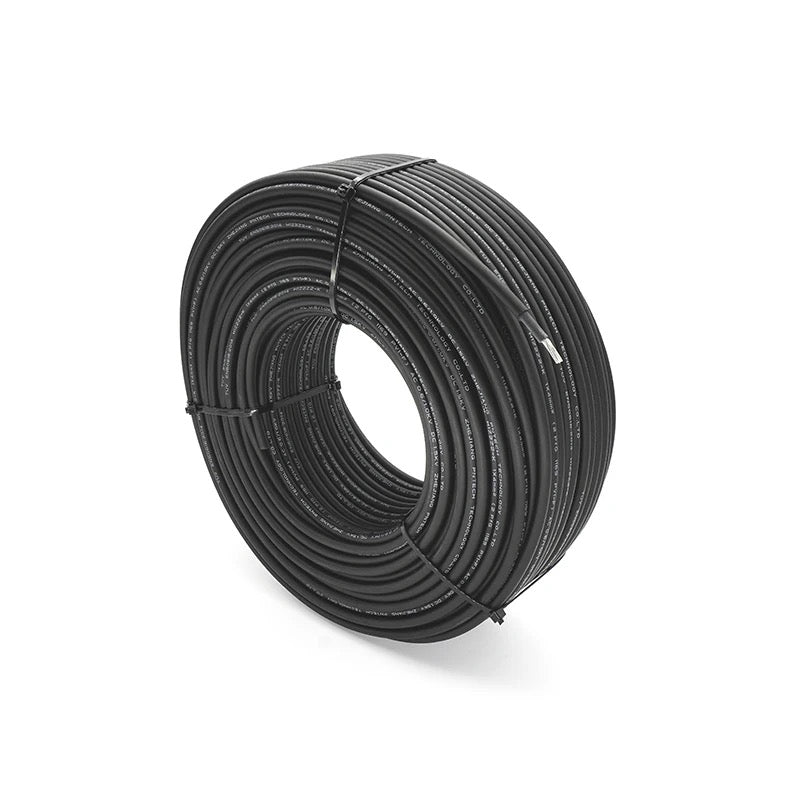

TUV UL Approved solar panel cable 6mm2 2.5mm 4mm solar connector solar pv cable for solar panel

TUV UL Approved solar panel cable 6mm2 2.5mm 4mm solar connector solar pv cable for solar panel

Prix habituel $0.00 USD
Prix habituel Prix promotionnel $0.00 USD
En vente Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Discover the power of TUV UL Approved solar panel cables. This 6mm² 2.5mm² 4mm² solar connector is perfect for mounting your solar panel, giving you energy and reliability for years to come. Feel the confidence that comes with unbeatable safety standards, providing you with the best solution for your project. Ready to harness the sun? Shop now!

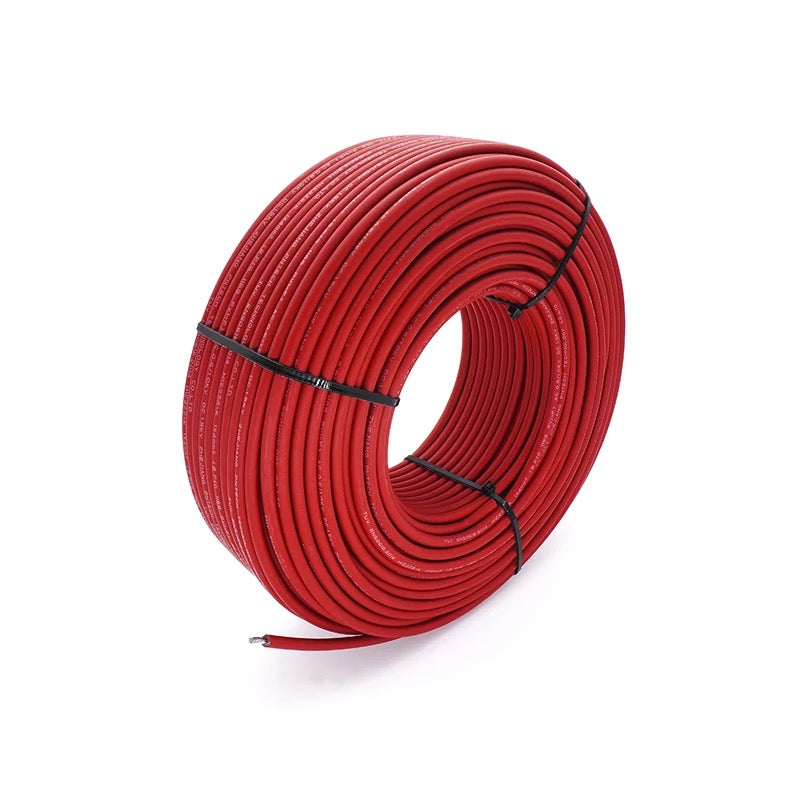

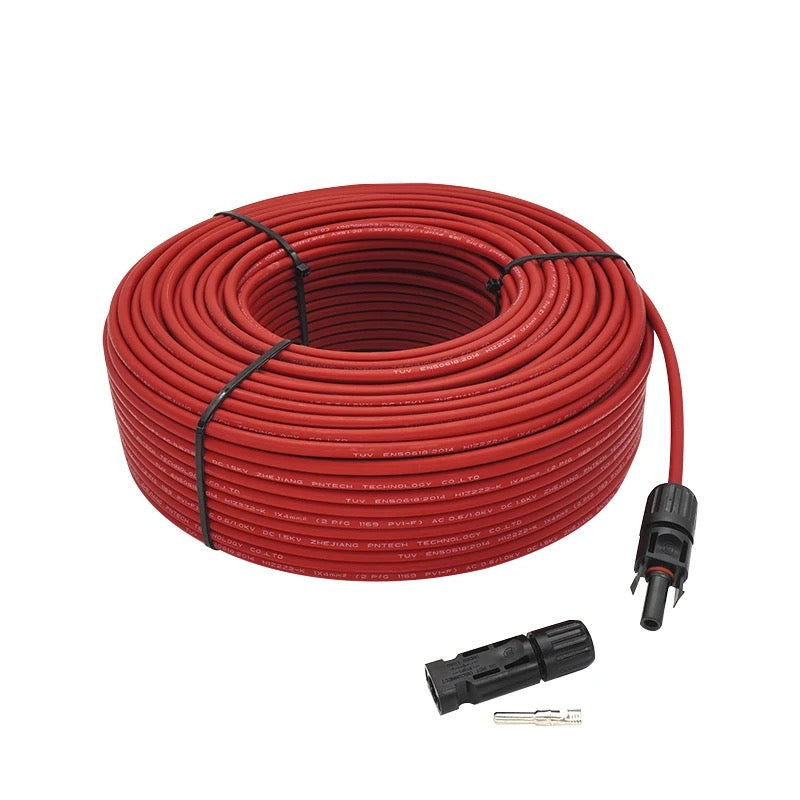

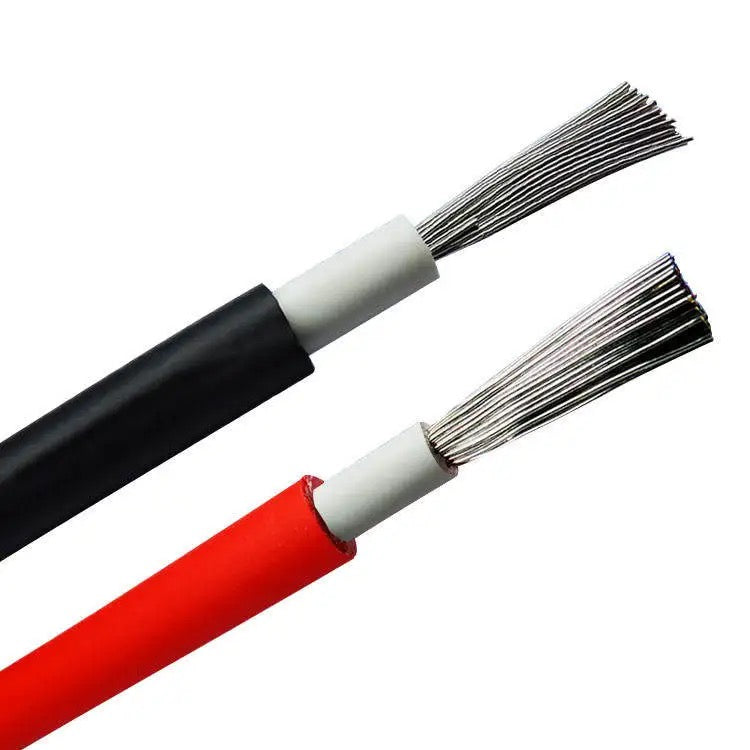

Product Name     Photovoltaric / PV wire cable

Description                 10 AWG 6mm² Tinned Copper Conductor
Specifications             Outer Dia. 6.1mm
 Insulation                   XLPE  White
Jacket                          PTFE  Red & Black
Ideal Working Temp    -40ºC/-104ºF to 90ºC / 194ºF                          Conductor Class          Class 5 / CAT5 as per IEC-60228                      Max.Temp                   20,000 Hours @ 120ºC / 248ºF
Wire / Cable Type       PV1-F, H1Z2Z2-K
Certificated                 TUV, UL



About Photovoltaic / PV / Solar Wire Cable:
Solar wires, used to connect the components of a photovoltaic system, come in various types We mainly supply.stranded wire consists of several conductors twisted together and covered with jacket to form a multi-strand wire. Stranded solar
wire is more flexible and has the ability to sustain frequent movement. The recommendation is to use standard wire if you install your solar system in a location with high winds or subjected to frequent vibration. Since there are several conductors in a single run, stranded wire offers better conductivity.
Standard wire is the typical choice for larger and outdoor installations.
The Solar / PV wire we manufacturing is single conductor, insulated, and jacketed wire that is rated at 90° Celsius wet or dry (-40°C to 90°C),with a primary voltage of up to 2000V. Our PV wires are flame retardant (flame rated VW-1), sunlight resistant, moisture resistant, and crush resistant. They are rated for direct burial through a conduit or raceway in compliance with UL and TUV Standard,

About this item:
* 【Advantage】This Solar cable is made with Fully Annealed stranded bare copper conductor (Class 5 / CAT 5 as per IEC-60228) , increases conductivity. Designed to withstand extreme heat and cold (-104oF to +194oF )and 6 mm² is thick enough to push maximum, permissible voltage: up to 1.8 kV.

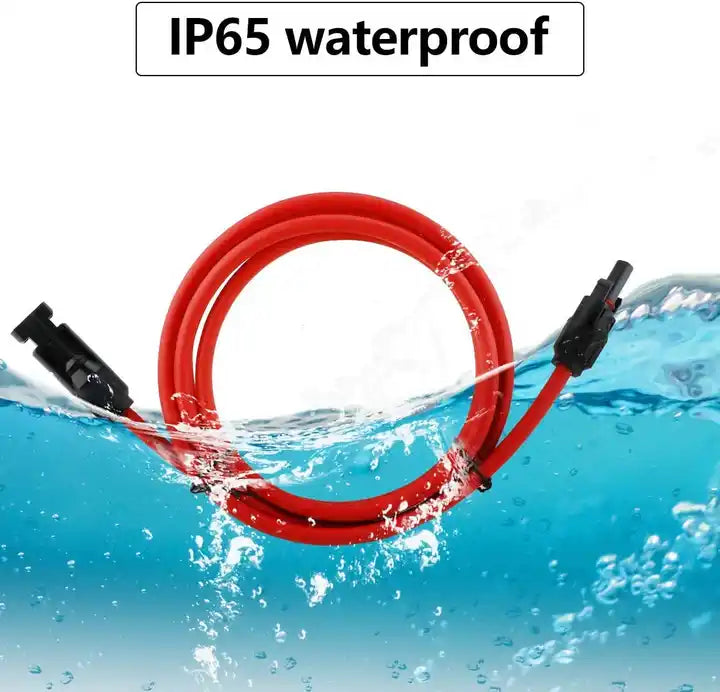

* 【Insulation Material】This solar cable have multiple resistant.Built-in insulation protection layer to prevent the risk of electric shock. The insulation and jacket are made of the low smoke, halogen free and flame retardant PO Compound , which can be flame retardant and prevent fire.Acid and alkali resistant Resistant to ozone, UV-resistant, very durable to use.
* 【Conductor】This wire consists of standard 78 / 0.295MM strands of tinned copper wire. The TUV-compliant wire allows stable operation between the solar panel and the charge controller or between two solar panels,allows for greater customization of the solar system.
* 【Compliant】This solar cable meets TUV standards for photovoltaic solar applications and can be used in a variety of environments to ensure circuit safety.

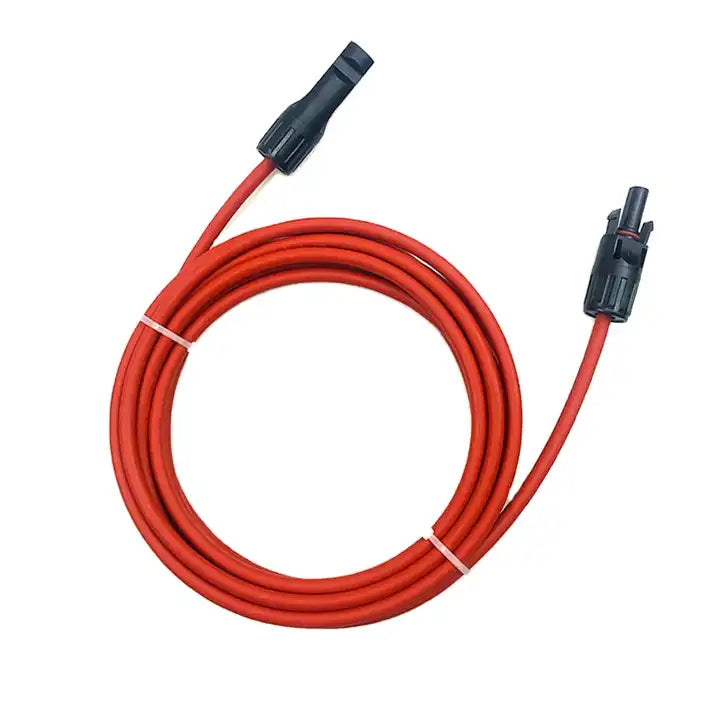

* 【Wide Application】The solar panel extension cable is widely used for solar applications,extend more space between your solar panels and between your solar panel and charge controller.

FAQ

1. How does your factory control quality?
We have more than 15 quality staffs use CKP, PFMEA to
manage our production process, we have made a lot of connectors, cables and wire harnesses for Automobiles, Boats and industries. All products are 100% tested before Delivery.

2. Is there any environmental risk on materials?
We are an ISO9001/ISO14001 certificated company, All our materials are RoHS 2.0 compliant, we select materials from big company and always be tested. Our products have exported to Europe and North America for more than 10 years,we can provide COC if needed.

3. How can I customize our products?                                                                If you have drawings please send to us, if no drawings please send us photos or samples, then tell us your SPEC. For a wire harness we need to know the connector type, wire gauge, wire length and wire diagram.

4. Can you supply OEM & ODM service?
Yes. We have specialized in manufacturing high quality connectors,
cables and wire harnesses for more than 10 years, we have a professional
engineering team, OEM & ODM projects are warm welcome.

5. Can you provide samples for testing?
After price confirmation, you can require samples to test performance.
Most of samples can be supplied by free ( depends on the kinds and qty),
but always need you pay for shipping cost.

6. What is your lead time for mass production?
Honestly, it depends on order quantity and products complexity.
Normal lead time is 2-4 weeks.

7. Any warranties with your products?
We manufacturer long life, durable products for industries, Wire harnesses,
always 5 years Warranties, connectors and cables we provide 5-10 years
Warranties. This is the longest warranties in our industries,
only we can give our customer this promise.
