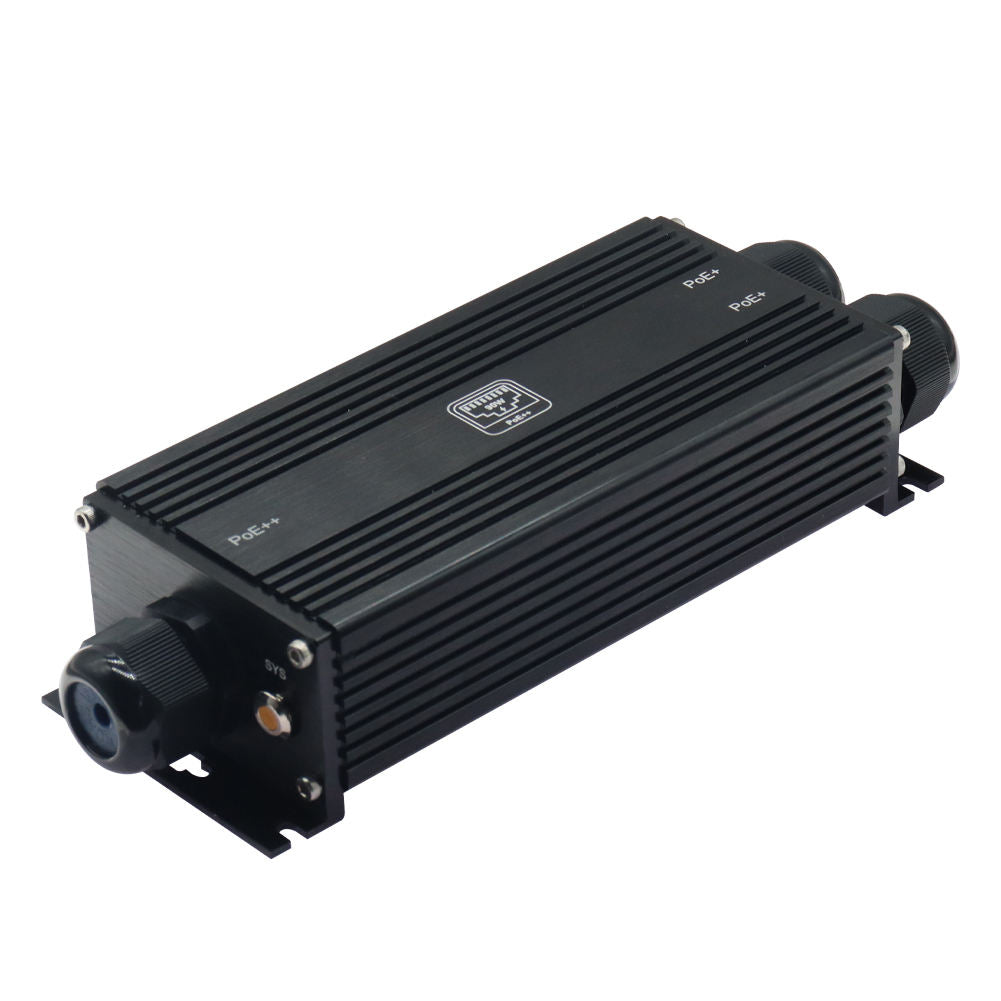

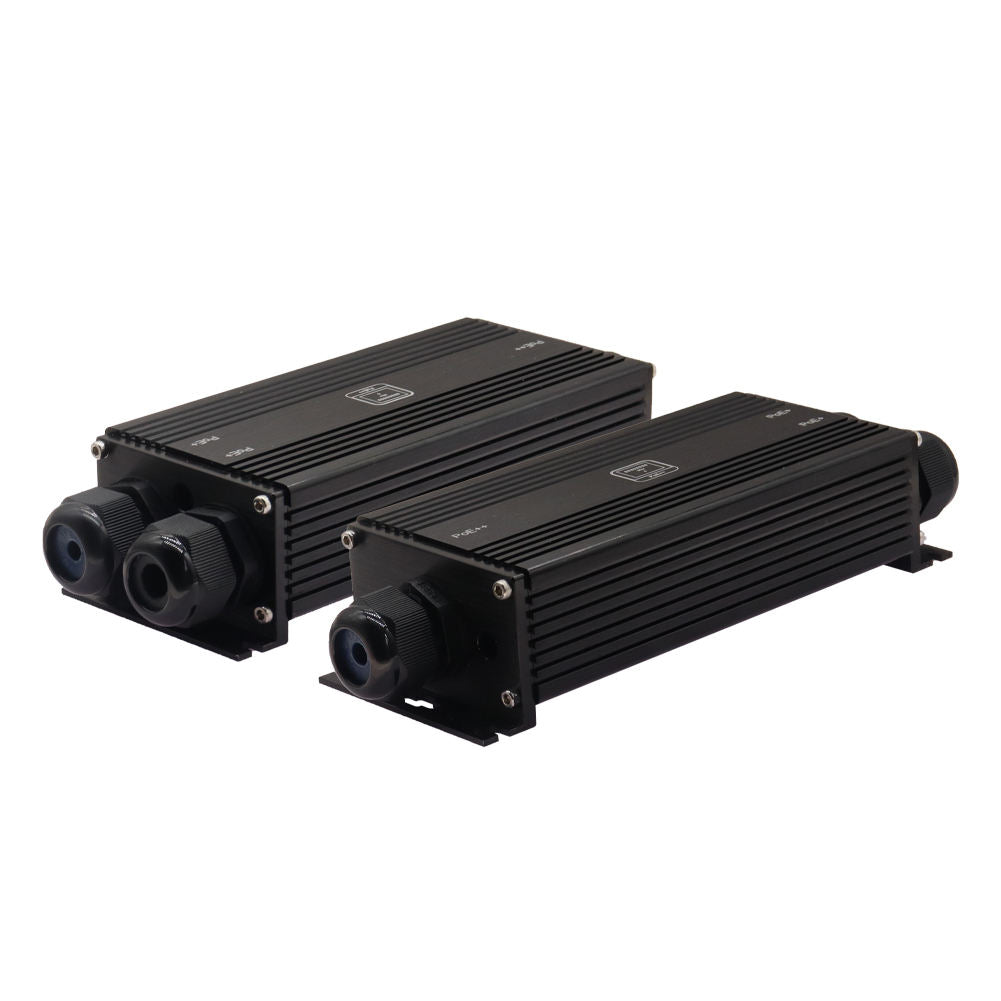

Outdoor Use IP67 Protection Waterproof Industrial Gigabit Ethernet IEEE802.3bt PoE Extender for Harsh Environment
Outdoor Use IP67 Protection Waterproof Industrial Gigabit Ethernet IEEE802.3bt PoE Extender for Harsh Environment
픽업 사용 가능 여부를 로드할 수 없습니다.
Overview
DFT-WP-IPE102 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 2-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
Features
* IP67-rated aluminum case
* 10/100/1000Mbps Ethernet Ports
* All ports support IEEE 802.3af/at/bt standards
* 1 x Input, 2 x Output
* Enables 100-meter extension of Ethernet connectivity with PoE
* Wall-mountable design
* Wide operating temperature range: -40°C to 80°C
* No external power cable required for installation
* Plug-and-play functionality
* Supports 2K MAC address table for connecting more
* 10kB jumbo frame support in 1000Mbps full-duplex mode
|
Ethernet Port |
|
|
PoE Input Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
PoE Output Port |
2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
Cascade Connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
|
Input Voltage |
IEEE802.3 bt 90W |
|
PoE Output Power |
Maximum 65W |
|
Single Port PoE Output |
Maximum 60W |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
Each extender extends by 100m, max 3 grade Cascade, total 400m. |
|
MAC Table |
2K |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC |
|
ESD Protection |
6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
|
Protection Level |
IP 67 |
|
Explosion-Proof Rating |
IK10 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
195 x 75 x 46 mm |
|
Weight |
0.6 kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
Wall-mount |
