100G 200G DWDM Mux/Demux
100G 200G DWDM Mux/Demux
Couldn't load pickup availability
Description
Dense wavelength division multiplexer (DWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

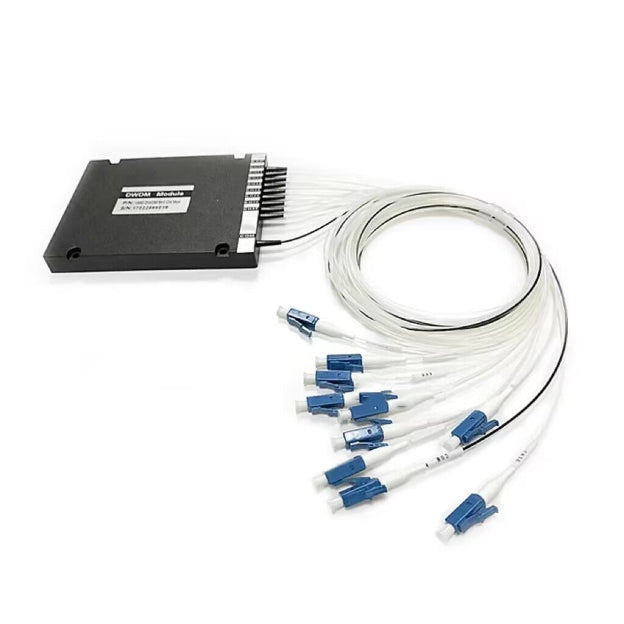

We makes full range of DWDM products, including 50Ghz, 100Ghz and 200Ghz. Due to our rich experience of manufacturing, we make DWDM with extremely low loss and high stability and reliability. Different packages and customized package can be offered with request. Common DWDM products package include: bare single DWDM device packed in glass tube or stainless steel tube, DWDM Mux Demux modules packed in ABS box up to 16-channel or even 20-channel Multiplexing on a single fiber or DWDM modules packed in standard 19” 1U rackmount. We can also take “Skip Component” in a DWDM Mux/Demux module to reduce the total IL as an option.
Features
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
Applications
- Channel Add/Drop
- DWDM Network
- Telecommunication
- Wavelength Routing
- Fiber Optical Amplifier
- CATV Fiber Optic System
Performance Specifications for 100Ghz or 200Ghz DWDM
|
Parameter |
4 Channel |
8 Channel |
16 Channel |
||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||
|
Channel Wavelength (nm) |
C-Band |
||||||
|
Center wavelength Accuracy (nm) |
±0.1 |
||||||
|
Channel Spacing (Ghz) |
100Ghz or 200Ghz |
||||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
100G: >0.3 |
200G: >0.5 |
|||||
|
Insertion Loss (dB) |
≤1.8 |
≤3.0 |
≤4.5 |
||||
|
Channel Uniformity (dB) |
≤0.6 |
≤1.0 |
≤1.5 |
||||
|
Channel Ripple (dB) |
0.3 |
||||||
|
Isolation (dB) |
Adjacent |
>30 |
|||||
|
Non-adjacent |
>40 |
||||||
|
Isolation (dB) |
Express with filter |
>30 |
|||||
|
Express without filter |
>12 |
||||||
|
Inertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
||||||
|
Wavelength Temperature Shifting (nm/℃) |
<0.002 |
||||||
|
Polarization Dependent Loss (dB) |
<0.1 |
<0.1 |
<0.15 |
||||
|
Polarization Mode Dispersion |
<0.1 |
||||||
|
Directivity (dB) |
>50 |
||||||
|
Return Loss(dB) |
>45 |
||||||
|
Maximum Power Handling (mW) |
300 |
||||||
|
Opterating Temperature (℃) |
-5~+75 |
||||||
|
Storage Temperature (℃) |
-40~+85 |
||||||
|
Package dimension (mm) (Glass tube) |
Ø4.2*25 |
||||||
|
Package dimension (mm) (Steel tube) |
Ø5.5*34 |
||||||
|
Package dimension (mm) (ABS box) |
A: L100 x W80 x H10 |
B: L140 x W115 x H18 |
|||||
|
Package dimension (mm) (LGX box) |
C: L129 x W29 x H155.5 |
||||||
|
Package dimension (mm) (19” 1U Rackmount) |
D: L440 x H44 x D200 |
||||||
Specification may change without notice.
Above specification are for device without connectors.
ABS box Dimension:
100X80X10 ABS box
140X115X18 ABS box
Package box dimension:

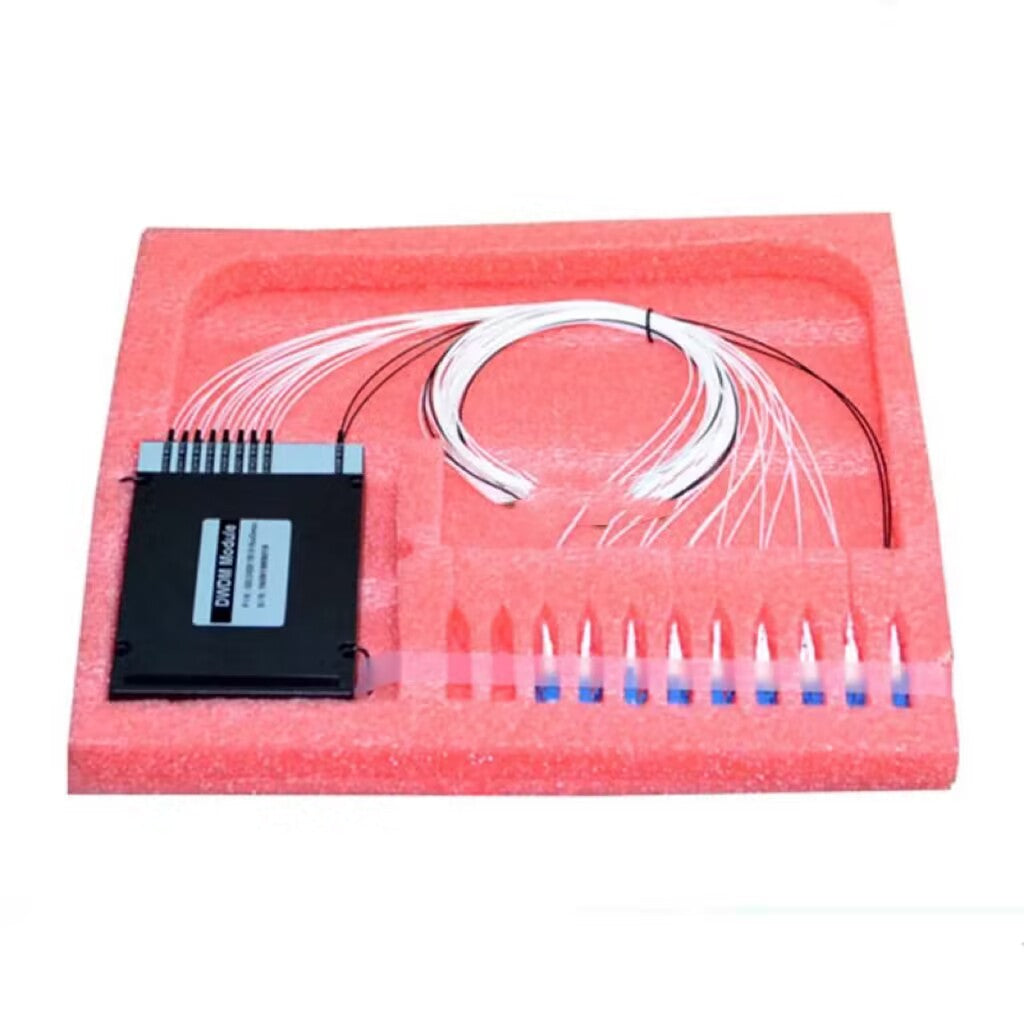

- Package for size A: 100x80x10mm ABS box for less than 10 channle DWDM, Mux+Demux 2pcs module packed together.
The lable on top left corner: 50*30mm with detailed product information and date.
- Package for size B: 140x115x18mm ABS box for over 10-CH DWDM, Mux or Demux 1pc module packed inside.
The lable on top left corner: 50*30mm with detailed product information and date.

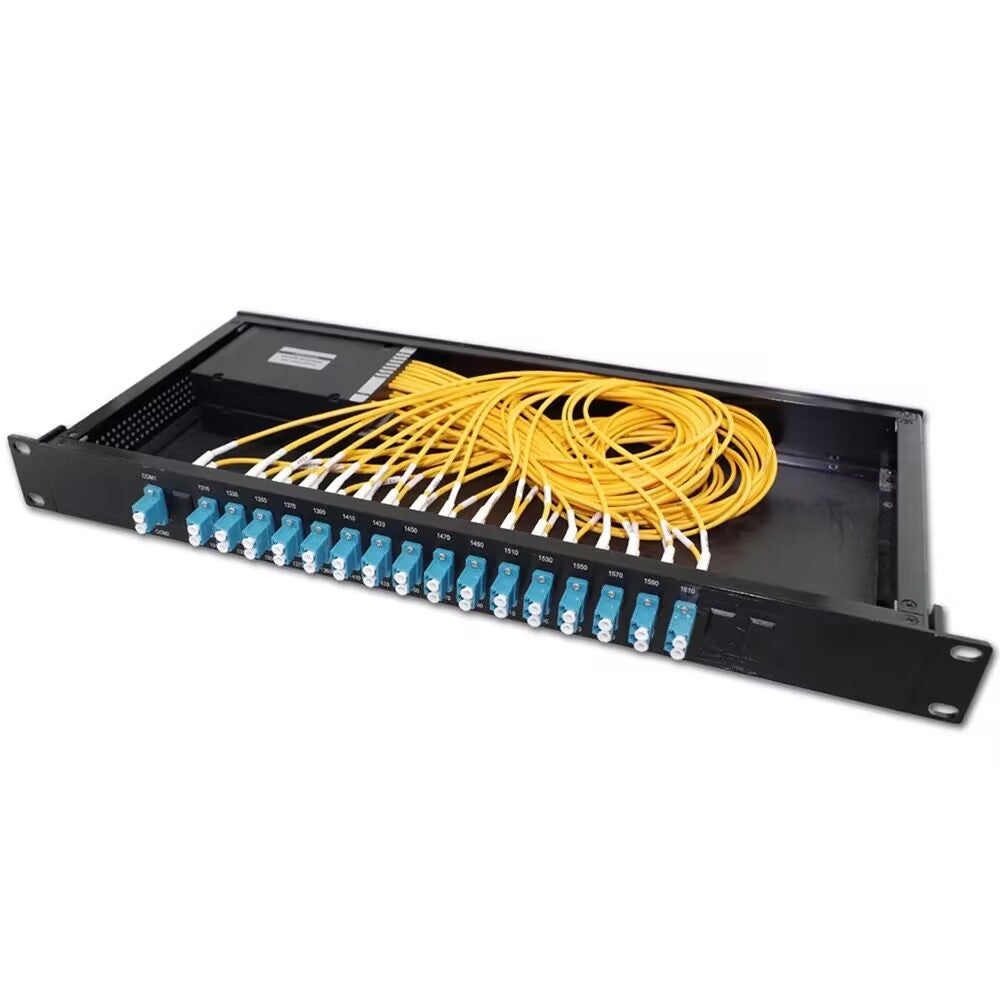

- Package for 19”1U rackmount: 440x 44 x 200mm rackmount, 1pc rackmount packed inside.
The lable on top left corner: 50*30mm with detailed product information and date.
Note: Package may change without notice, the reserve all rights.
Ordering Information
|
DWDM |
X |
XX |
X |
XX |
X |
X |
XX |
|
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
5=50G 1=100G 2=200G |
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
M=Mux D=Demux O=OADM |
01=C01 …… 21=C21 22=C22 …… 61=C61 SS=special |
1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
