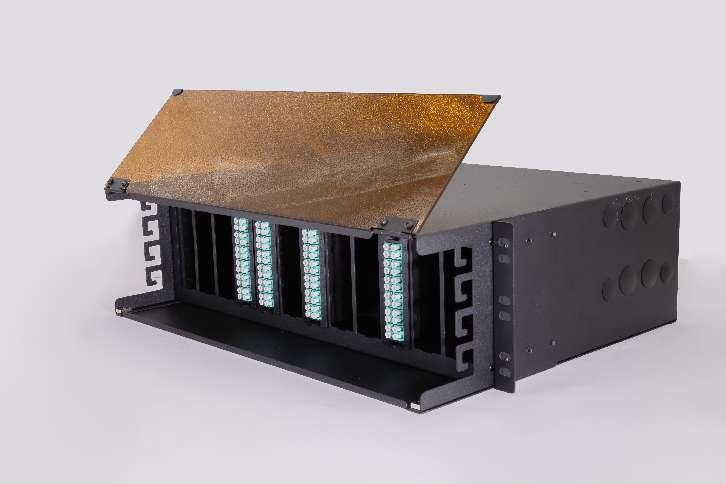

3U fixed high-density chassis ODF
3U fixed high-density chassis ODF
Couldn't load pickup availability
Designed specifically for data center environments, it can serve as a protective function for fiber optic management.
3U fixed high-density chassis
The 3U fixed chassis mounting housing provides a flexible and modular system that enables convenient pre-termination wiring of connectors. They are designed to maximize density while reducing rack space in rack or cabinet configurations.
Compliant with standards
1.TIA/EIA-568-C.3
2.ISO9001 Quality management System
3.ISO Certificate
Product Features
1.3U can accommodate up to 288 cores
2 Modular design, 3U height can accommodate up to 12 24-core module boxes of 288 cores
3 For 19-inch standard racks with front cable management frames with door locks
4. The box is made of high-quality cold-rolled steel plate and has a black fine sand-textured electrostatically sprayed surface
5. The fixed panel can be detachable to install the module box or adapter panel strip, and the idle socket can be equipped with a blind plate
|
Product Specifications |
|
|
Rack space |
3U |
|
Interface types |
Snap-on |
|
Fiber capacity |
288 cores |
|
Chassis type |
Mounting rack |
|
Materials |
Cold-rolled steel sheet |
|
Dimensions (HxWxD) |
x x x x mm |
|
Configuration |
12/24-core module box or adapter panel strip |
|
Environmental characteristics |
||
|
Operating temperature |
-25℃ to |
50 ℃ |
|
Storage temperature |
-40℃ to |
65 ℃ |
|
Installation temperature |
-0℃ to |
50 ℃ |
Chassis capacity
|
Types |
Model |
Capacity |
Number of fiber cores |
1U fixed chassis 1UFCE 4 96F
|
2U fixed chassis |
8 |
192F |
Compatible module types
1. Fiber adapter panel
|
Types |
|
|
|
24F, 12xLC duplex fiber adapter panel |
|
|
|
12F, 6xLC duplex fiber adapter panel |
|
|
|
6x MTP® key up to Key Down fiber Adapter panel |
|
|
|
Blind plate |
|
|
|
Types |
Capacity |
Applicable fiber type |
|
8F, MTP®-8 to 4x LC duplex module box |
8F |
OS2/OM1/OM2/OM3/OM4/OM5 |
|
12F, MTP®-12 to 6x LC duplex module box, Type A |
12F |
OS2/OM1/OM2/OM3/OM4/OM5 |
|
12F, MTP®-12 to 6x LC duplex module box, Type AF |
12F |
OS2/OM1/OM2/OM3/OM4/OM5 |
|
24F, MTP®-12 to 12x LC duplex module box, Type A |
24F |
OS2/OM1/OM2/OM3/OM4/OM5 |
|
24F, MTP®-12 to 12x LC duplex module box, Type AF |
24F |
OS2/OM1/OM2/OM3/OM4/OM5 |
