Active optical-layer transmission platform FW-6600
Active optical-layer transmission platform FW-6600
Couldn't load pickup availability

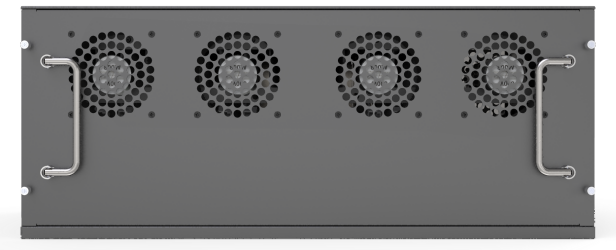

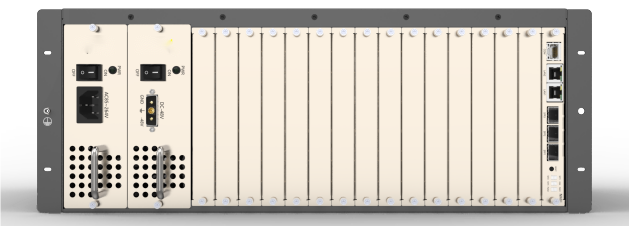

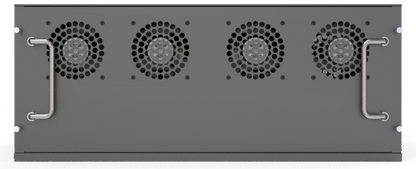

1) 1U/2U/4U Rack FW-6600
The Optical Layer product series FW-6600 is a new generation, high-capacity, and multi-service access optical network platform introduced by DFT . This platform features high integration of services, large port density, diverse types of services, and flexible configurations. It supports a graphical management interface based on the SNMP protocol in either C/S or B/S architecture, providing clear fault localization for efficient management and maintenance, thereby reducing maintenance costs.
This platform is widely used in telecommunications operators, broadcasting and television, power, education, cloud computing, and information security sectors. It is designed for all-optical networks and is applied in national, inter-provincial, intra-provincial trunk lines, local metropolitan area networks, and various dedicated networks. The platform offers independent and transparent transmission of transport signals, multiplexing of multiple signals to save optical fiber resources, and ensures security and reliability. It helps customers build long-distance, highly reliable, secure, flexible, and disaster-resistant optical transport networks, making it the optimal solution for coping with the scarcity of optical cable resources.
Product Features
Flexible networking with a compact footprint and strong scalability.
Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards.
Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video. Supports maximum single-channel rates of 100G, 200G, 400G.
Supports various networking configurations, including point-to-point, point-to-multipoint, and ring
topologies, with options for single-fiber or dual-fiber bidirectional transmission.
Supports interoperability with client devices from different vendors, including single-mode(1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes.
Supports SNMPbased unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface) .
Supports 1+1 hot swappable redundant power backup with options for both AC and DC powe sources .
Product Specifications
|
System Parameters |
1U Chassis |
2U Chassis |
4U Chassis |
|
|
Device Dimensions (mm) |
482(W)×44(H)×320(D) |
486(W) ×86(H)×352(D) |
483(W)×178(H)×280(D) |
|
|
Number of Service Slots |
4 slots |
8 slots |
16 slots |
|
|
Power Consumption |
<120W |
<200W |
<300W |
|
|
Wavelength Range |
DWDM:1529. 16nm~1567. 14nm CWDM:1271nm~1611nm |
|||
|
Channel Spacing |
50/100 GHz fixed 37.5-400 GHz flex-grid |
|||
|
Supported Service Types |
SDH, SONET, Ethernet，SAN ，OTN ，Video |
|||
|
Maximum Single-Channel Rates |
100G, 200G, 400G |
|||
|
Optical Interface Transmission |
Supports 2R transmission mode for transparent transmission between 32M and 111.81Gbit/s. Supports 3R transmission mode with optional rates including 155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.488Gbit/s, 4GFC, 8GFC, 10GFC, 11.3Gbit/s, 25Gbit/s, 40Gbit/s, 56Gbit/s, 100Gbit/s, 200Gbit/s, and 400Gbit/s . |
|||
|
Network Topology |
Point-to-point, ring, star, chain, tangent ring, mesh |
|||
|
Network Management |
CLI 、 NetViver 、Web |
|||
|
Environmental Requirements |
Operating |
-10C~50C |
||
|
Storage |
-40C~80C |
|||
|
Relative Humidity |
5%~95% non-condensing |
|||
|
Power Requirements (Typical) |
AC Power Supply: Voltage Range: 90V~264V, 50/60Hz DC Power Supply: Voltage Range: -36V~60V |
|||
|
Safety and EMC Compliance |
Meets FCC, UL, CE, TUV, CSA standards |
|||
