Hot Sale OEM Factory Power Support 120W 8 Ports PoE Switch with VLAN PoE Watchdog Function for IP Cameras
Hot Sale OEM Factory Power Support 120W 8 Ports PoE Switch with VLAN PoE Watchdog Function for IP Cameras
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Key attributes
Industry-specific attributes
Transmission Rate 10/100/1000Mbps
Communication Mode Full-Duplex & Half-Duplex
Switch Capacity 5.6Gbps
Other attributes
Place of Origin GUA
Private Mold Yes
Products Status Stock
Ports ≤ 8
Function LACP, POE, QoS, SNMP, Stackable, VLAN Support
Brand Name DFTELECOM
Model Number DFT-G082
Type POE Switch
Power Input AC 100-240V, 50/60Hz
PoE Standard PoE IEEE 802.3af/at
PoE Ports 8*100Mbps POE Port
Uplink Ports 2*1000Mbps RJ45 Uplink Port
Power Supply 120W
Throughput 4.166Mpps
Main Feature:
◆Support IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3af/at;
◆Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆Ethernet port supports 10/100/1000M adaptive and POE functions;
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Support port auto flip (Auto MDI/MDIX);
◆All ports support wire-speed switching;
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis;
◆Support VLAN Mode and Extend 250 meters Mode;
◆Support 1U Rack Mount.
|
I/O Interface
|
|
|
Power
|
Input: AC 100-240V, 50/60Hz
|
|
Ethernet
|
8 Port 100M PoE port
2 Port 1000M RJ45 Uplink port
|
|
Performance
|
|
|
Switching Capacity
|
5.6Gbps
|
|
Throughput
|
4.166Mpps
|
|
Packet Buffer
|
448K
|
|
MAC Address
|
2K
|
|
Jumbo Frame
|
2Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hour
|
|
Standard
|
|
|
Network protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af （15.4W）
IEEE802.3at （30W） |
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
|
Protection
|
|
|
Security Certificate
|
CE、FCC、RoHS
|
|
Environment
|
|
|
Working Environment
|
Working Temperature：-10~50°C
Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
|
Indication
|
|
|
LED Indicators
|
PWR（power supply），SW（DIP），1-10 Green（Link&Data）
|
|
DIP Switch
|
VLAN：Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only
communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend：Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
|
Mechanical
|
|
|
Structure Size
|
Product Dimension : 200*118*44mm
Package Dimension : 245*190*60mm N.W：0.60kg G.W：0.90kg |
|
Packing Info
|
Carton MEAS：505*320*400mm
Packing Qty：20 units Packing Weight：19.0KG |
|
Power Voltage
|
Input Voltage ：AC 100-240 V
Power supply：52V1.85A |
|

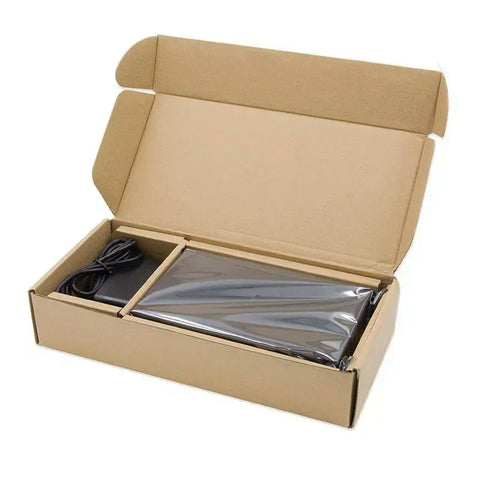

Package List
|
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
|
