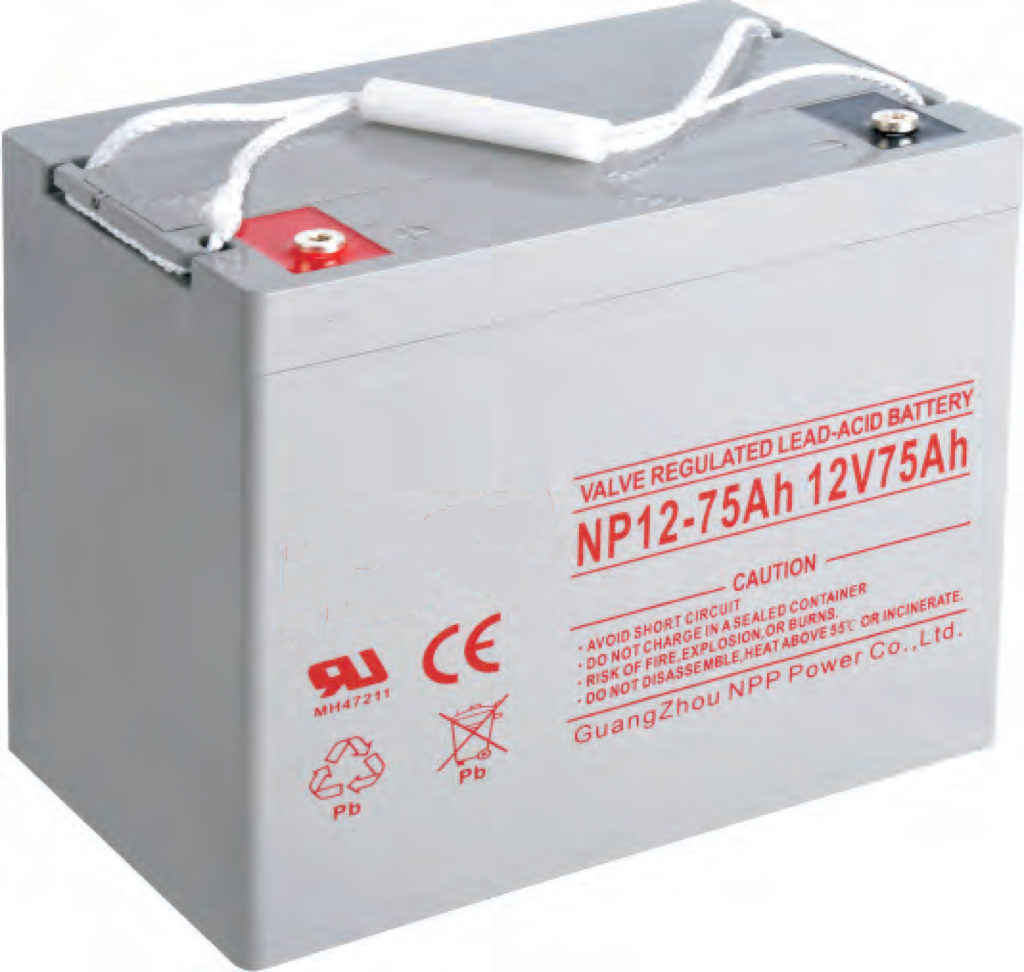

Lead Acid Battery
Lead Acid Battery
Couldn't load pickup availability
More information about Specification Table pls contact Sales representative.
Capacity range: 33Ah-3000Ah(25°C)
Voltage class：2V/6V/12V
Number of cycles（25°C）：
30%DOD：1300 cycles (12V/6V) 1800 cycles (2V)
50%DOD：700 cycles (12V/6V) 850 cycles (2V)
100%DOD：300 cycles (12V/6V) 400 cycles (2V)
Suitable for shallow discharge cycles
Low self-discharge rate: ≤2%/month（25°C）
Design life: floating life :
6V/12V is 10 years（25°C）
2V is 15 years（25°C）
Temperature range for use:-15~50°C
Operation temperature range:-20-50°C
Recommended operation temperature 25°C
Application Fields
Emergency light systems/ Standby power supply/ UPS and computer standby power supply/ Power supply/ Solar system/ Wind system/ Telecommunication system/ Firefighting equipment standby power supply/ Railway system/Power station.
High Rate Series
Capacity range: 21W~520W/cell(25°C)
Voltage class： 12V
Low self-discharge rate:≤2%/month（25°C）
High performance with the high current discharge over 2C
High sealed reaction efficiency:≥98%
Temperature range for use:-15~50°C
Operation temperature range:-20~50°C
Recommended operation temperature 25°C
Design features
Long service life
Operation at a low internal pressure
Positive and negative plates in lead-calcium tin alloy
Superior energy density and very high power output.
Application Fields
UPS/Power supply/Telecommunication system/Electric power system

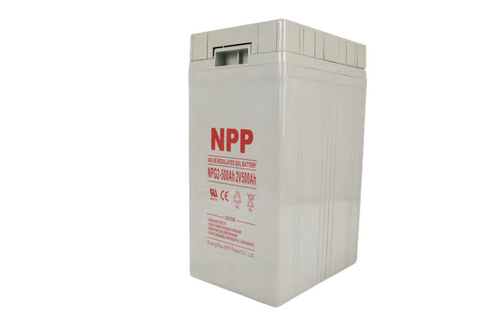

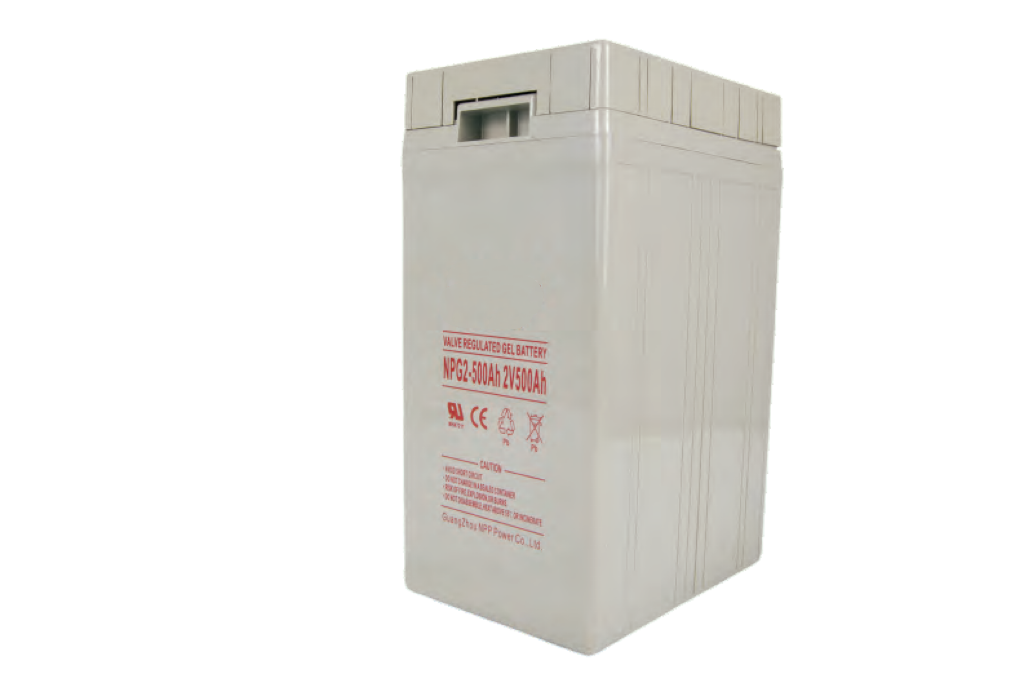

2 v series
Capacity range: 100ah-3000ah (25°C)
Voltage range: 2V
Low self-discharge rate: 25 ° c, less than 3% per month
Long design life: 25 degrees Celsius, floating life of 10-15 years
High seal response rate: > 98%
Applicable environment: -15~50°C
Design features
Stable quality & high reliability
Very Long service life
Maintenance-free operation
Heavy-duty grids
Low self-discharge
AAA
Application Fields
UPS Telecommunications Solar and wind systems Railway systems Reserve Power
