LFR Series LiFePO4 Technology for Telecom – Base Station
LFR Series LiFePO4 Technology for Telecom – Base Station
Couldn't load pickup availability
Applications
Base Stations
Telecommunications
Solar & Wind Energy Storage
UPS
Data Centers
Electric Power systems
All-purpose
|
Battery Model |
Rated Voltage |
Rated Capacity |
Discharge Current |
Peak Discharge Current |
Cut off Discharge Voltage |
Charge Voltage |
Charge Current |
Weight |
Dimenison LxWxH [mm] |
Height* |
|
LFR51.2-35 |
51,2V |
35Ah |
50A |
100A |
44,8 |
58,4 |
7 |
22,9 kg |
442x480x178 |
4U |
|
LFR51.2-50 |
51,2V |
50Ah |
100A |
150A |
44,8 |
58,4 |
10 |
28,7 kg |
442x480x178 |
4U |
|
LFR51.2-100 |
51,2V |
100Ah |
100A |
300A |
44,8 |
58,4 |
20 |
46 kg |
442x480x222 |
5U |
|
LFR51.2-150 |
51,2V |
150Ah |
100A |
300A |
44,8 |
58,4 |
30 |
73,5 kg |
442x480x311 |
7U |
|
LFR51.2-200 |
51,2V |
200Ah |
100A |
300A |
44,8 |
58,4 |
40 |
85 kg |
442x480x311 |
7U |
|
LFR51.2-250 |
51,2V |
250Ah |
100A |
300A |
44,8 |
58,4 |
50 |
115 kg |
442x650x311 |
7U |
|
LFR51.2-300 |
51,2V |
300Ah |
100A |
300A |
44,8 |
58,4 |
60 |
125,5 kg |
442x650x311 |
7U |
*Rack Unit: 1U = 44.45 mm (EC 60297-3-108:2014)
Hot-sale Models
Models Available
Capacity range: 50Ah ~ 300Ah
Voltage class: 12.8V, 25.6V, 51.2V
51.2V100Ah
51.2V200Ah

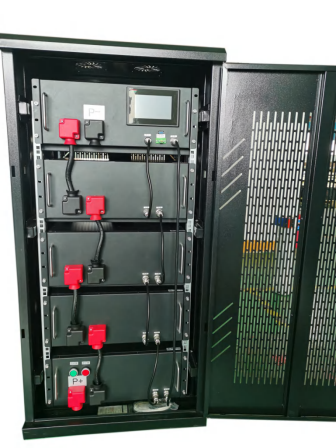

Cabinet Power
Features
Safety
Reliability
Long life
Standardized designs
Modular connection
Charging and discharging dual
control
RS485/232/CAN port

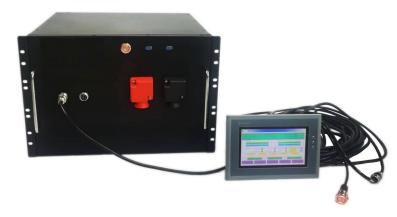

Visualization, touch screen
Flexible expansion, parallel
connection available
Remote maintenance feature
support long distance monitoring, 4G
mobile app monitoring
