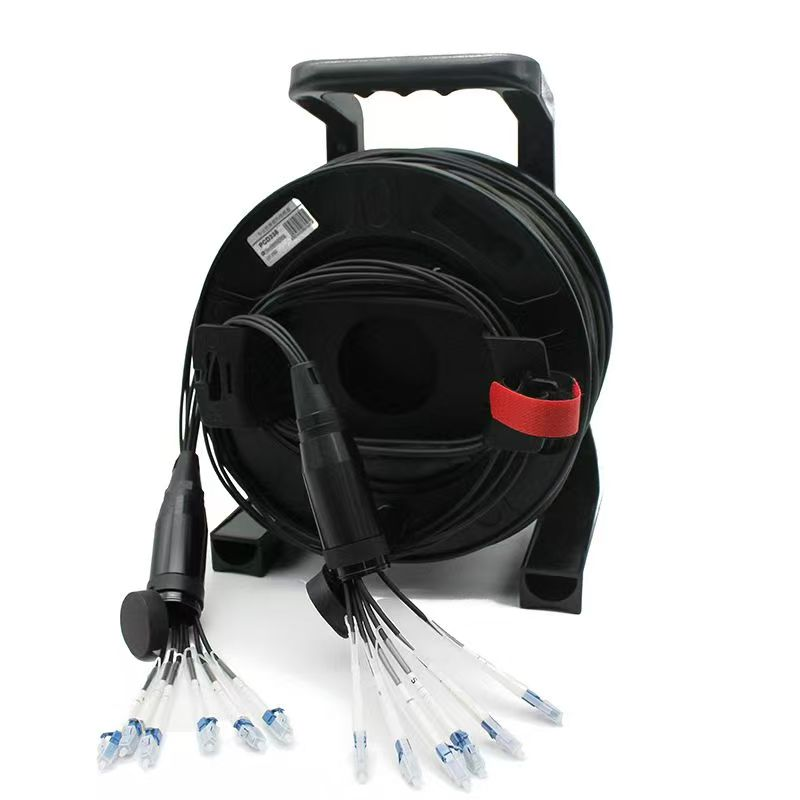

Outdoor Fiber Optic Patch Cord Tractical
Outdoor Fiber Optic Patch Cord Tractical
Couldn't load pickup availability
Tractical fiber cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, 5G Base station (BBU to RRU),Emergency communication, stage performance, conference communication
CPRI fiber patch cable are rapidly becoming the standard connector interface.
FEATURE
* Easily add/install jumper cables for a future expansion
* Factory-assembled cables for a fast on-site installation
* IP67 water and dust protection
* Flexibility with small bending radius and excellent cable routing properties
*Equipped with customer specific power and fiber optic connectors
|
TEM |
PARAMETER |
|
Connector type |
PDLC-DLC; DLC-DLC |
|
Insertion Loss |
SM/UPC≤0.3dB MM/UPC≤0.3dB |
|
Return Loss |
SM/UPC≥50 dB MM/UPC≥35 dB |
|
IP level |
IP67 |
|
Wavelength |
1260nm-1650nm |
|
Test wavelength |
1310nm, 1550nm |
|
Repeatability |
<=0.1 |
|
Interchangeability |
<=0.2dB |
|
Durability |
<=0.2dB |
|
Cable Length |
10m, 20m….. any length optional. |
|
Branch length |
A:30mm B: 340mm C:50mm |
|
Cable Model |
GYFJH |
|
|
Fiber Count |
2, 4 Fibers |
|
|
Fiber Type |
SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
|
|

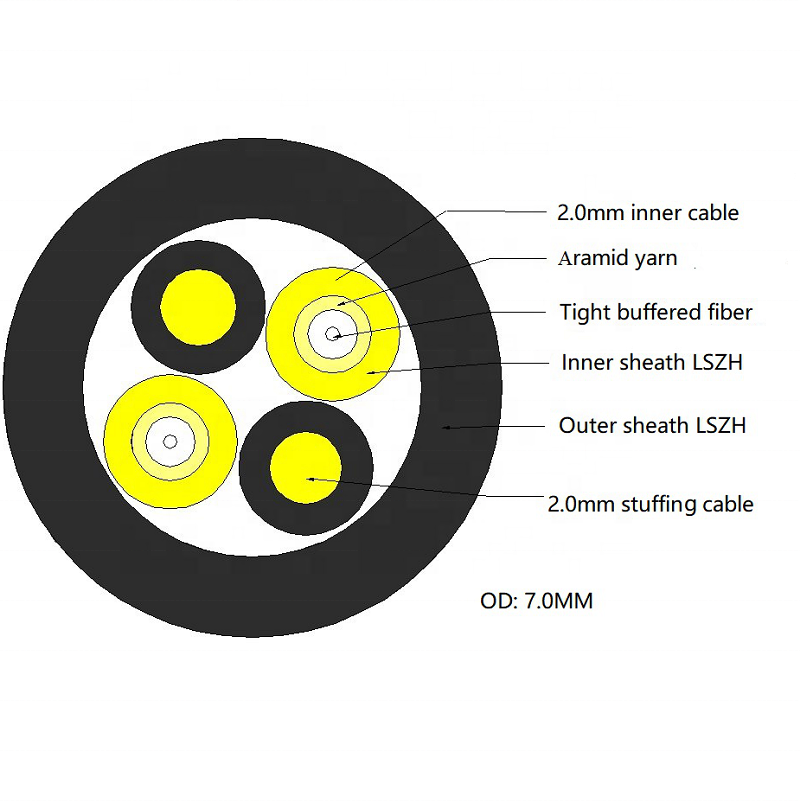

Buffer Diameter |
900um±10um |
|
|
Inner cable |
Diameter |
2.0mm±0.1mm |
|
|
Material |
LSZH |
|
|
Color |
Orange or blue or customized |
|
Filler |
Diameter |
2.0mm±0.1mm |
|
|
Material |
LSZH |
|
|
Color |
Black |
|
Strength Member |
Material |
Kevlar |
|
Jacket |
Diameter |
7.0±0.1mm or 5mm |
|
|
material |
LSZH |
|
|
Color |
Black |
