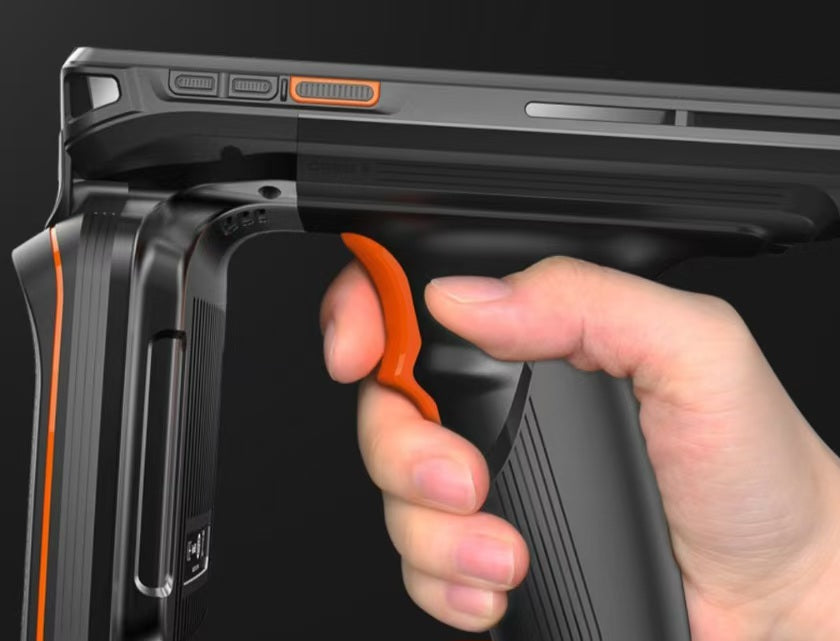

RFID handheld device DF-RF50U
RFID handheld device DF-RF50U
Couldn't load pickup availability
The DF-RF50U is an intelligent PDA device that combines basic configuration, rich operation methods and practical application functions, along with complete maintenance and troubleshooting guidelines:
Appearance and basic configuration
It has a multi-view appearance design, supports battery, dual SIM card and TF card
mounting, SIM card 1 is the preferred network, and the network display is related to the carrier card and VOLTE function activation status.
How to operate
Power can be turned on, off and forced to restart by holding down the power button;
After connecting to a computer and installing the driver or mobile phone assistant, you
can perform online operations such as USB file transfer and debugging.
Typical application features
Scanning function: Equipped with a 2D scanning engine, it can read multiple 1D / 2D
barcodes 360 degrees, with rich customization options such as floating button switch,
multiple trigger modes, multiple types of output, encoding Settings, fill light configuration,
and supports import and export of configuration files and restoration of the scanning
engine factory Settings.
Reading function: It can scan RFID tags and display information such as the number of
tags, recognition speed, signal strength, etc. It supports management operations such as reading, writing, locking, and destruction of tags. It has filters, multiple reading modes,
location functions and basic parameter Settings, and can export data to Excel.
Maintenance and Troubleshooting clarify the precautions for daily maintenance of the
equipment, including screen, body protection and cleaning methods; At the same time,
solutions are provided for a variety of common problems such as system crashes, failure to boot, network failures, and abnormal touch.
RFID Function parameters
|
Function |
RFID read/Write |
|
Air Interface Protocol |
Compliant with ISO-18000-6C/EPCC1G2 |
|
Antenna Parameters |
5dBiC circular polarization, with a default of 902-928 MHZ |
|
Operating frequency |
860-960MHZ (customizable according to national regional regulations), default 902-928MHZ |
|
Mode of operation |
Frequency Hopping Spread Spectrum (FHSS) or fixed-frequency transmission mode |
|
Output power |
1~33dBm |
|
Reading distance |
≥9m @9662 white card (Practical distance is subject to tag and environment) |
|
Write distance |
0 ~ 6m@9662 white card (practical distance varies by label and environment) |
|
Group read speed |
Up to 700 tags/sec @impinj H47(actual distance varies by tag and environment) |
|
Card reading speed |
The average reading time per word (32bits) is 12ms |
|
Write card speed |
The average writing time for each single word (32bits) is 60ms |
|
Power consumption |
Average power <8W |
Communication parameters:
|
Features |
Wireless LAN WIFI 5 |
|
Protocol |
IEEE 802.11a/b/g/n/ac |
|
Frequency range |
Depending on the country (region), 2.4GHz is 2.412GHz - 2.472GHz; 5GHz is 5.180GHz - 5.825GHz |
|
Working channel |
CH1~CH13, CH36-CH140, CH149~CH165 |
|
Safety |
Support WPA2-Personal, WPA2-Enterprise, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM EAP-AKA, EAP-AKA Prime |
|
Feature 2 |
The wireless wide area network |
|
Frequency |
GSM: Qual Band(850/900/1800/1900 MHZ) WCDMA: Band1, Band2, Band5, Band8 CDMA :BC0, EVDO TD-SCDMA B34, B39 LTE: Band1, Band3, Band5, Band7, Band8, Band20, Band28, Band34, Band38, Band39, Band40, Band41 CA: B1+B3, B39+B41; |
|
Function 3 |
Wireless Personal Area Network NFC (optional) |
|
Air Interface Protocol |
Supports ISO15693, ISO14443A/B (without encryption protocol), supports NFC protocol |
|
Operating frequency |
HF band 13.56MHz |
|
Read distance |
ISO15693 typical values greater than 5cm, ISO14443A typical values greater than 4cm, ISO14443B typical values greater than 1.5cm (related to the label) |
Physical parameters:
|
CPU |
Octa-core MTK 8788 2.0GHz |
|
Operating system |
Android12 |
|
Storage |
4GB+64GB (optional 8GB+128GB) |
|
Card slot |
SIM+TF (PSAM not supported) |
|
User Storage Extension |
Micro SD Card, up to 256GB compatible |
|
Interfaces/Communications |
Waterproof Type C USB interface, supporting USB2.0 HighSpeed, supporting OTG. |
|
Keyboard |
Power + Volume (+, -) +UHF+SCAN+ Custom + rigger key |
|
Display screen |
5.5-inch display, capacitive touch |
|
1440(H)×720(W) |
|
|
Power supply |
Handle 6700mAh replaceable |
|
Bottom Type C USB port supports QC3.0 fast charging, intelligently recognizes PC and charger; |
|
|
Notification method |
Sound, vibrator, LED light indication |
|
Audio |
Built-in single speaker, built-in dual microphones (with noise cancellation) |
|
Sensor |
G-sensor, light sensor, distance sensor, electronic compass, gyroscope |
|
Size |
170(H)*80(W)*132.7(T)mm (16.4mm) |
|
Weight (including standard battery) |
580g (with battery) |
|
Operating temperature |
-20 ° C to +50 ° C |
|
Storage temperature |
-40 ° C to +60 ° C (with battery) -40 ° C to +70 ° C (battery excluded) |
|
Humidity |
5% to 95% RH no condensation state |
|
Waterproof and dustproof industrial grade |
IP67 |
|
Drop grade |
2.0 meters |
|
Electrostatic discharge (ESD) |
±15kV air discharge, ±8kV direct discharge |
|
Package Size |
15*10*5cm 950g |
