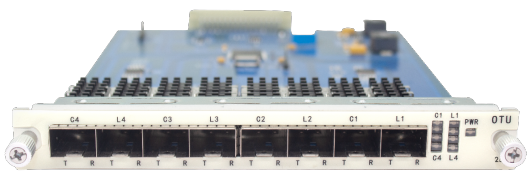

Transponder Card 25G OTU/OEO FW625G
Transponder Card 25G OTU/OEO FW625G
Couldn't load pickup availability
The 25G OTU/OEO Transponder Card is a module developed by DFfor amplifying signals in optical transmission . It can amplify service protocols with arbitrary rates ranging from 1.25Gbit/s to 25.78Gbit/s. This Card is suitable for optical communication systems such as SDH/POS/SONET/SAN/ETHERNET, providing a high quality solution for transmission lines with significant fiber loss.
Product Features
Supports applications such as single-mode to multi-mode conversion and optical power amplification.
Supports unidirectional or bidirectional relay amplification.
Supports amplification at various wavelengths, including 850nm, 1310nm, CWDM or DWDM.
Supports the access of 4-channel bidirectional or 8-channel unidirectional service protocols with arbitrary rates ranging from 1.25Gbit/s to 25.78Gbit/s.
Transparent transmission of service data.
Hot-swappable capability.
Supports FEC functionality, optimizing output, monitoring DDM signals, and enabling link
detection (no light emission when no receiving signal is present).
Supports SNMPbased unified network management platform with management options including
CLI (telnet and console), Web, and NetView (graphical interface).
Product Specifications
|
Parameters |
Technical Specifications |
|
Maximum Capacity |
4x25G bidirectional transmission 8x25G unidirectional transmission |
|
Wavelength Range |
CWDM ：1271~1611nm |
|
|
Multimode ：850nm Single mode ：1310nm DWDM ：C-Band (100GHZ or 50GHZ) |
|
|
Service Access Types |
SDH 、SONET 、Ethernet 、SAN 、OTN 、Video |
|
|
Management Functions |
CDR Function (Real-time DDM Monitoring) Adaptive Setting for Different Rates Unidirectional or Bidirectional Service Setting |
|
|
Management Methods |
Web 、NetView |
|
|
Dimensions |
156 (W) × 20 (H) × 225 (D) (mm) |
|
|
Environmental Requirements |
Operating Temperature |
-10C ~ 50C |
|
Storage Temperature |
-40C ~ 80C |
|
|
Relative Humidity |
5% ~ 95% (non-condensing) |
|
|
Safety and EMC Compliance |
Complies with FCC, UL, CE, TUV, CSA standards |
|
|
Power Consumption |
<20W |
|
