DWDM multi-channel multiplexer /demultiplexer (MUX /DEMUX) modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.
Fixed MUX/DEMUX modules offer lowcost wavelength management solutions that are suitable for long haul, metro, and access application.
Product specification
|
Channels |
4 |
8 |
16 |
|
Insertion Loss |
<1.5dB |
<2.4dB |
<4.0dB |
|
Wavelength Range |
C- band ITU channels |
Technology |
TFF (Thin Film Filter) |
|
Channel Spacing |
100GHZ(0.8nm) |
Passband Ripple |
≤ 0.5dB |
|
Channel Passband |
±0.11nm |
Channel Isolation |
Adjacent ≥30dB Non-adjacent ≥ 45dB |
|
Polarization Dependent Loss |
≤ 0.2dB |
Polarization Mode Dispersion |
≤ 0.2ps |
|
Directivity |
≥ 50dB |
Return Loss |
≥ 45dB |
|
Optical Power Handling |
≤ 500mW |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Fiber Type |
SMF-28e+ |
Connector |
LC/SC/FC or other |
1U Rack Type
DWDM MUX DEMUX 4CH Dual fiber 1U Rack
DWDM MUX DEMUX 8CH Dual fiber 1U Rack
DWDM MUX DEMUX 16CH Dual fiber 1U Rack
DWDM MUX DEMUX 16CH with RB Port, Single fiber 1U Rack A Side
DWDM MUX DEMUX 16CH with RB Port, Single fiber 1U Rack B Side
Package Information
|
Net Weight |
3.5KG |
Dimensions (HxWxD) |
44*440*230mm |
LGX Box and 2-slots 1U Rack Type
DWDM MUX DEMUX 4CH Dual Fiber LC/UPC LGX Box
DWDM MUX DEMUX 8CH Dual Fiber LC/UPC LGX Box
DWDM MUX DEMUX 8CH Single Fiber LC/UPC LGX Box Side A
DWDM MUX DEMUX 8CH Single Fiber LC/UPC LGX Box Side B
1U 2-slots Rack for LGX BOX
1U 2-slots Rack for LGX BOX
Package Information
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.0KG |
Dimensions (HxWxD) |
LGX Box: 220*200*39mm 1U Rack : 44*440*230mm |
LGX Box And 4-slots 1U Rack Type
DWDM MUX DEMUX 4CH Dual Fiber LC/UPC LGX Box
DWDM MUX DEMUX 8CH Dual Fiber LC/UPC LGX Box
DWDM MUX DEMUX 8CH Single Fiber LC/UPC LGX Box Side A
DWDM MUX DEMUX 8CH Single Fiber LC/UPC LGX Box Side B
1U 4-slots Rack for LGX BOX
Package Information
|
Net Weight |
LGX Box: 0.5KG 4slot 1U Rack: 2.5KG |
Dimensions |
LGX Box: 214*150*20mm 1U Rack : 440*160*44mm |

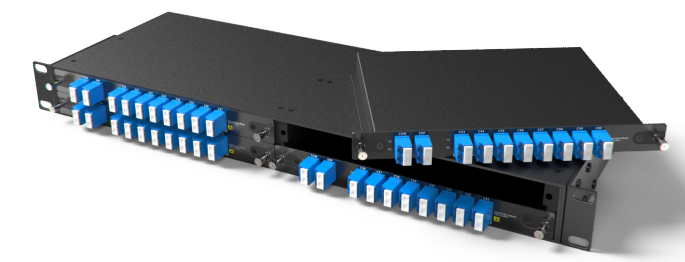

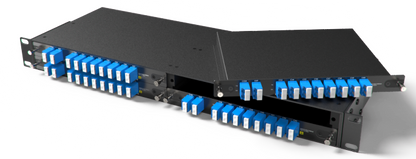

LGX BOX Plug in 4-Slot 1U Rack 4-Slot 1U Rack for LGX BOX
